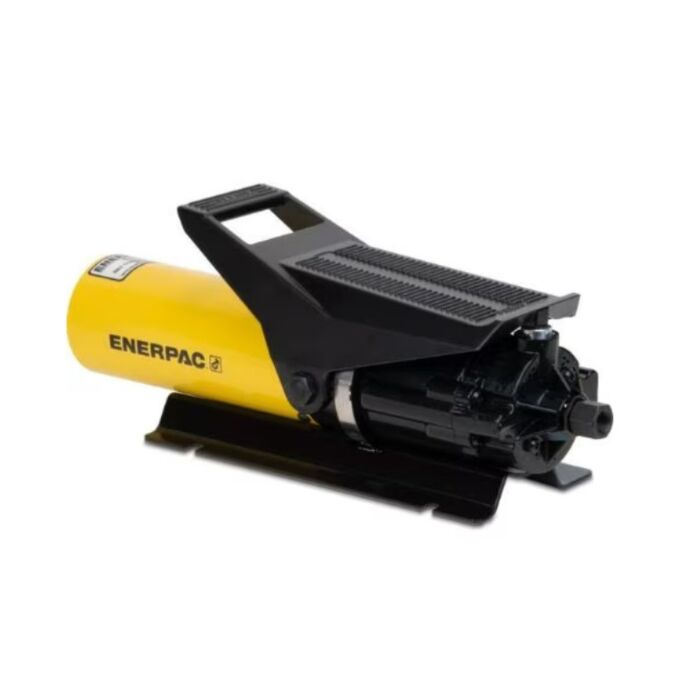

Enerpac PA133 Air Hydraulic Pump, 36 in3 Oil, 8 in3/min Oil Flow
Air Hydraulic Pump, 36 in3 Oil, 8 in3/min Oil Flow

Order #: PA133

Mfg #: PA133

Questions about availability or need help? Contact Us:

(800) 633-0561
$1,465.80

Enerpac PA133 Air Hydraulic Pump, 36 in3 Oil, 8 in3/min Oil Flow

Air Hydraulic Pump, 36 in3 Oil, 8 in3/min Oil Flow

Order #: PA133

Mfg #: PA133

$1,465.80
Availability:
In stock

Product Highlights

Air Hydraulic Pump, 36 in3 Usable Oil, 8 in3/min Oil Flow at 10,000 psi

Enerpac PA Series Air Over Hydraulic Pumps are robust, simple to use, and easy to service. The series includes several models with varying reservoir capacities, air consumption, and maximum operating pressures.

All models can be used either by foot or hand to advance and retract your single-acting hydraulic tool. The PA133 and PA1150 models also provide a hold capability.

The swivel coupling enables simple connection and hassle-free operation. The PA133, PA135, and PA136 models include base mounting slots.

The maximum operating pressure depends upon the model, and ranges from 3,000-10,000 psi (207-700 bar). Maximum flow rates at rated pressures range from 8 in3/min up to 120 in3/min (0.13L - 1.97L).

PA-Series at a Glance:

  • PA133: Advance / Hold / Retract. Max 10,000 psi. Max flow 8 in3/min (0.13 l/min).
  • PA1150: Advance / Hold / Retract. Max 10,000 psi. Max flow 8 in3/min (0.13 l/min). Extra oil capacity.
  • PA135: Advance / Retract. Max 5,000 psi. Max flow 60 in3/min. (0.98 l/min).
  • PA136: Advance / Retract. Max 3,000 psi. Max flow 120 in3/min (1.97 l/min).
  • Rugged construction - built for long life and easy service
  • Swivel coupling simplifies hydraulic connection and pump operation
  • Three-position treadle provides cylinder advance, hold and retract operation
Win a Generac Generator when purchasing $750 or more from Transcat.Win a Generac Generator when purchasing $750 or more from Transcat.
Maximum Operating Pressure (psi) 10,000
Cylinder Compatability Single-acting
Reservoir Capacity (in3) 36
Usable Oil Capacity (in3) 36
Maximum Flow at Rated Pressure 8 in3/min
Output Flow Rate (in3/min) No Load 40
Output Flow Rate Load (in3/min) 8
Valve Function Advance/Hold/Retract
Valve Operation Manual
Power Source Manual
Air Pressure Range (psi) 60-120
Air Consumption (scfm) 9
Sound Level (dBa) 85
Weight (lbs) 24
