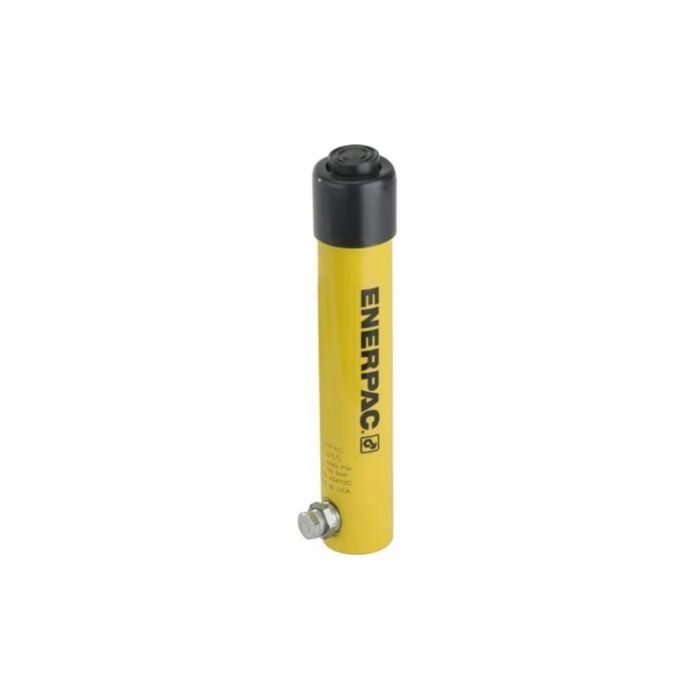

Enerpac RW55 General Purpose Hydraulic Cylinder, 4970 lbs

Order # RW55

Mfg # RW55

800-828-1470

$696.41

Enerpac RW55 General Purpose Hydraulic Cylinder, 4970 lbs

Order # RW55 | Mfg # RW55

New

$696.41

Ships in 3-4 weeks

Tariff fees or manufacture imposed surcharges may be applicable.

Overview

4970 lbs Capacity, 5.17 in Stroke, General Purpose Hydraulic Cylinder, Cylindrical Model

Cylindrical models
High pressure design when additional force is required
Long stroke lengths in a compact design, well suited for welding applications
Collar mounting threads and base mounting holes allow flexible mounting options
Cylinders are provided with hardened saddles for additional plunger protection
Snap-in saddles are easily removed for adapting to different plunger devices
Chrome plated plunger with bronze upper and lower bearing provides a long cylinder life

Maximum Operating Pressure (psi)	10,000
Minimum Operating Pressure (psi)	600
Stroke (in)	5.17
Return Type	Single-Acting, Spring Return
Plunger Type	Solid
Material	Steel
Cylinder Effective Area Advance (in2)	0.99
Oil Capacity Advance (in3)	4.95
Cylinder Capacity Advance at 5000 psi (lbs)	4970
Weight (lbs)	3.9
