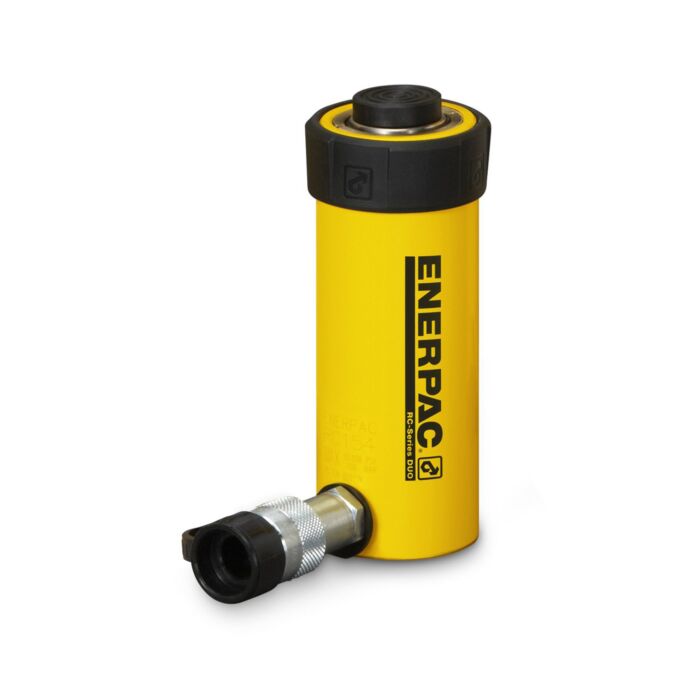

Enerpac RC-57 5 Ton Cylinder,S/A

Enerpac RC57 5 Ton Cylinder, S/A

Order # RC-57

Mfg # RC57

call-regular 800-828-1470
$1,038.18
Loading...
Loading...
  • Overview
  • Technical Resources
  • Specifications

Enerpac RC57 5 Ton Cylinder, S/A

Order # RC-57 | Mfg # RC57
$1,038.18
arrow_drop_down

Tariff fees or manufacture imposed surcharges may be applicable.

Overview

Product Highlights

  • Unique GR2 Bearing Design, reduces wear, extending life
  • Base mounting holes enable easy fixturing
  • Designed for use in all positions
  • High strength alloy steel for durability
  • Redesigned cylinder thread protector for ease of use
  • Heavy-duty, pretensioned spring improves retraction speed
  • Baked enamel finish for increased corrosion resistance
  • CR-400 coupler and dust cap included on all models
  • Plunger wiper reduces contamination, extending

Technical Resources

Specifications

Cylinder capacity5 tons (4.9 maximum)
Stroke length7.00 inches
Effective area0.99 square inches
Oil capacity6.96 cubic inches
Cylinder bore diameter1.13 inches
Collapsed height10.75 inches
Extended height17.75 inches
Outside diameter1.50 inches
Weight5.3 lb.
