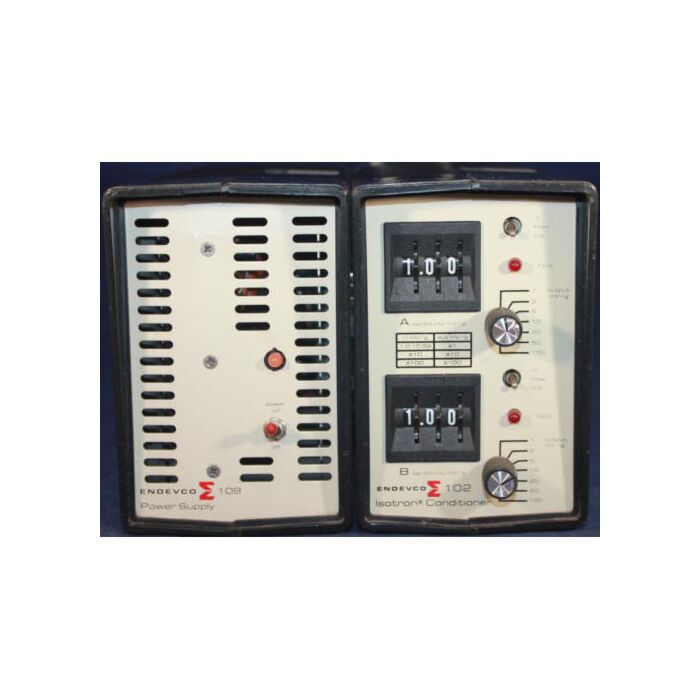

Endevco 109 for Rent, Power Supply, 24VDC <20mA, +/-15V/<30mA

Endevco 109 Highlights

• Input type: Single-ended with one side connected to the circuit common and case
• Maximum Input: 30,000 pC peak without overload charge
• Overload Recovery: Negligible for 50 msec square pulse whose amplitude does not exceed
• Input Resistance: 10 M ohms minimum
• Input Capacitance: 30,000 pF maximum
• Max Output Voltage: 10 V peak
• Max Output Current: 3 mA
• Output Offset Voltage: 15 mV max
• Output Protection: Short circuit to ground
• Model 109 Power Supply
• Standard Voltage: 105 to 132 VAC
• Frequency: 47 to 63 Hz
• Power Consumption: 25 Watts
• Standard Fuse: 1/2 ampere
• Output Voltage: +24, +15, -15 VDC at 400 mA each
• Line Regulation: ±0.2% for 10% line change
• Load Regulation: ±0.3% for 50% load change
• Output Ripple: 6 mV peak-to-peak
• Protection: Short circuit and overload
