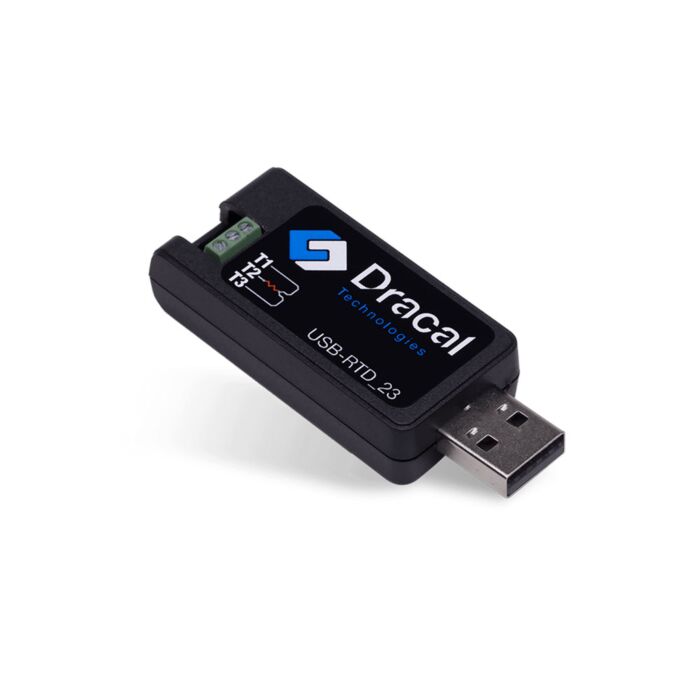

Dracal USB-RTD_23 2/3 Wire RTD sensor to USB adapter

Dracal USB-RTD_23

Order # USB-RTD_23

Mfg # 601045

call-regular 800-828-1470
$160.99
Loading...
Loading...
  • Overview
  • Technical Resources

Dracal USB-RTD_23

Order # USB-RTD_23 | Mfg # 601045
$160.99
arrow_drop_down

Tariff fees or manufacture imposed surcharges may be applicable.

This product is available for shipping to the United States and Canada only.

Overview

Product Highlights

Connect any Pt100 RTD sensor to a USB port with this adapter to measure a very wide range of temperatures with precision.

The RTD_23 is an adapter that connects a Pt100 RTD sensor to a computer via a USB port. With its 3-position terminal block, this units is very adaptable and allows wiring of a wide selection of sensors. The RTD_23 concretize precision real-time temperature measurement and logging projects, in a wide variety of environments, in less than 10 minutes.

  • Specifications
    • Operating range: -200°C to 800°C[1]
    • Resolution: 0.02°C (typical)[2]
    • Supports 2 and 3 wire PT-100 RTD sensors
    • The 3-position terminal block allows the wiring of a wide range of sensors.
    • Temperature calculation using the DIN 43760 coefficients
    • Precision: (at 25°C) ±0.06°C or better
    • 18-bit ADC
  • Available channels
    Channel Id Description Type Nature
    00 PT100 Temperature Sensor Temperature Real

    • Technical Resources

    Dracal RTD-23 Datasheet
