Dracal CONN-TMC-J-C-2PM
Mini flat 2-pin male connector for J thermocouple w/SR

Order #: CONN-TMC-J-C-2PM

Mfg #: 601121

Questions about availability or need help? Contact Us:

(800) 633-0561
$16.46

Dracal CONN-TMC-J-C-2PM

Mini flat 2-pin male connector for J thermocouple w/SR

Order #: CONN-TMC-J-C-2PM

Mfg #: 601121

$16.46
Availability: Ships in 3-4 weeks
This product is available for shipping to the United States and Canada only.
This product is available for shipping to the United States and Canada only.
This product is available for shipping to the United States and Canada only.

Product Highlights

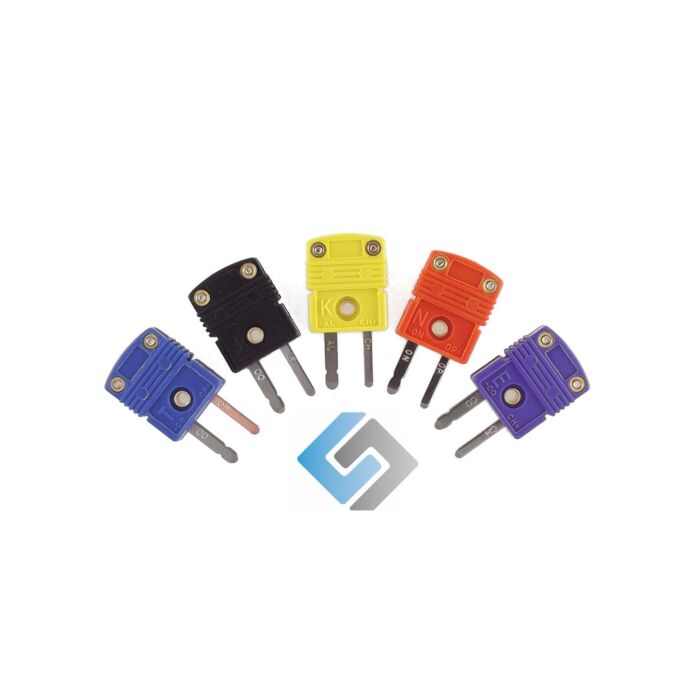

CONN-TMC-2PIN: Miniature 2-pin compensated connectors for types K,J,N,T and E thermocouples.

This connector connects to a thermocouple of the same type, allowing quick and error-free connection or disconnection due to the polarization of the pins.

  • Specifications
    • Contact type: Flat, compensated
    • Wiring style: Screw terminals, accepts wires up to 0.6 mm (22 AWG)
    • Number of circuits: 2
    • Cable diameter: Maximum 4.5 mm (approx. 6 AWG)
    • Polarized: Yes
    • Body: Thermoplastic
    • Body: Strain relief
    • Maximum operating temperature: Up to 180°C
  • Each Unit Includes

    • One (1) CONN-TMC-x-2PM connector
