Dracal CONN-M8A-FRP80
M8 A-code 4-pin Female Front- Mount Connector
Order #: CONN-M8A-FRP80
Mfg #: 250076
$30.58

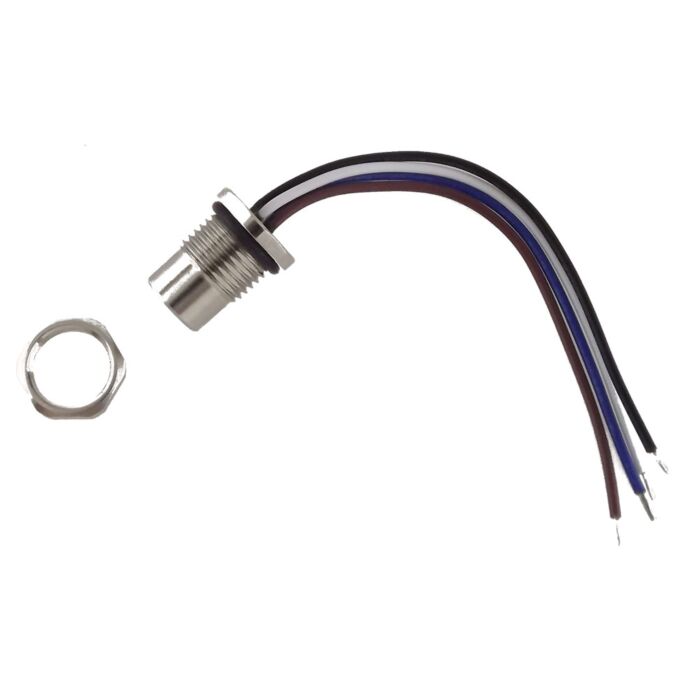

Dracal CONN-M8A-FRP80
M8 A-code 4-pin Female Front- Mount Connector
Order #: CONN-M8A-FRP80
Mfg #: 250076
$30.58
Availability: Ships in 3-4 weeks
Product Highlights
CONN-M8A-FRP80: 4-pin female connector.
This is a 4-pin IP67 waterproof M8 female connector. It is compatible with code A. This connector should be assembled from the inside of a housing or a panel.
- M8 protection rating: IP67
- Operating temperature: -10°C to 80°C
- Connector: M8, A-code female, 4-pin
- Contacts: Phosphorus and gold plating
- Wire gauge: 24 AWG (0.24 mm2)
- Weight: 80 g
- Wires length: 80mm
- Hole diameter: 11 mm
- Rating voltage: 30V Ac/DC
- Maximum current: 3A
Each Unit Includes
- One (1) CONN-M8A-FRP80
