Product Highlights

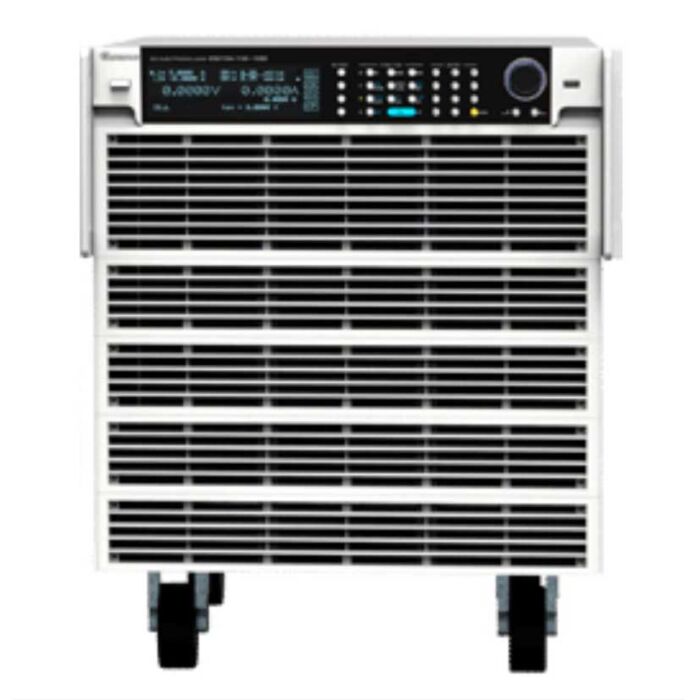

The 63200A series high power DC electronic loads are designed for testing a wide range of products including AC/DC and server power supplies, DC/DC converters, EV batteries, automotive charging stations, and other power electronics components. Each model has 3 power ranges, they can precisely measure the voltage and current in real time. The Chroma 63215A-150-1500 DC load offers high speed, programmable dynamic loading (CCD: Dynamic Current Loading & CRD: Dynamic Resistance Loading) and sweep simulation for testing.
The Chroma 63215A-150-1500 electronic DC loads operate in constant voltage, current, resistance, or power modes to satisfy a wide range of test requirements. A built-in highly precision A/D converter, achieving 0.015%+0.015%F.S., 0.04%+0.04%F.S. and 0.1%+0.1%F.S. accuracy for voltage, current and power measurement respectively. The unique CZ mode designed in the Chroma 63215A-150-1500 series can improve the loading behavior of CC & CP mode and makes the simulated loading current more realistic. In addition, the Chroma 63215A-150-1500 high power DC load also provides voltage peak measurement during actual loading conditions, avoiding the need for using an oscilloscope to capture the voltage peak, saving time and costs.
| |
Low |
Mid |
High |
| Voltage |
0-150V |
| Current |
0-150A |
0-750A |
0-1500A |
| Power |
0-15000W |
| Min Operating Voltage |
0.8V@150A |
0.9V@750A |
1.8V@1500A |
