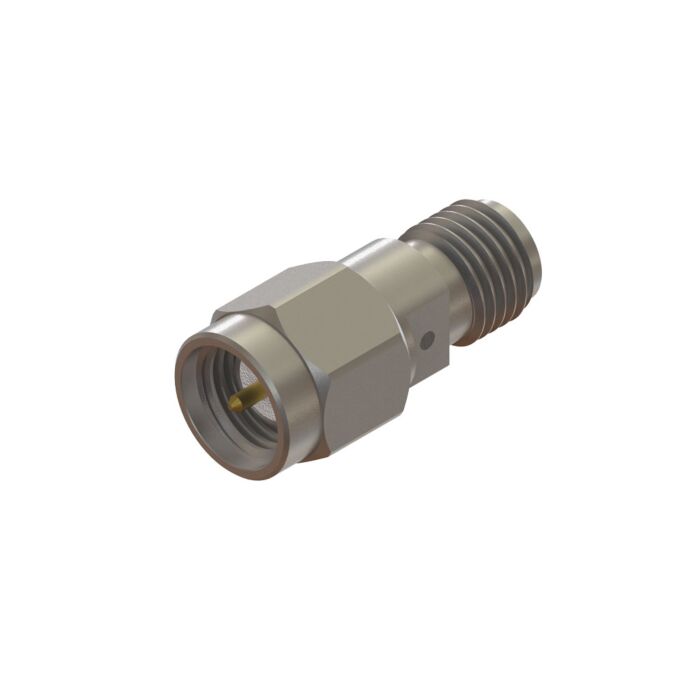

Cal Test Electronics CT3326A
SMA male to female Adapter
Order #: CT3326A
Mfg #: CT3326A
$68.60
Cal Test Electronics CT3326A
SMA male to female Adapter
Order #: CT3326A
Mfg #: CT3326A
Product Highlights
The CT3326A in an Instrument Grade coaxial adapter which provides that next level of measurement confidence. The grade provides tighter tolerances and better materials for improved performance in critical measurements. It is that cost effective middle-ground between general-purpose and very expensive metrology grade.
- Accuracy
- Low VSWR
- Flat frequency response
- Repeatability
- Cost effectiveness
| Connector Grade | Instrument |
| Body and Coupling Nut | Stainless Steel, Passivated |
| Center Contact | BeCu, Gold Plated |
| Dielectric | PTFE |
| Impedance | 50 Ω |
| Frequency | DC to 18 GHz |
| Insertion Loss | ≤0.05 x √f(GHz) dB |
| Contact Current | DC 2.0 A Max |
| CW Power | 50 W |
| RF Leakage | <-60 dB |
| Contact Resistance |
|
| Working Voltage | 335 Vrms |
| Insulation Resistance | 5,000 MΩ Min |
| VSWR |
|
| Temperature Range | -56°C to + 125°C |
| RoHS 2(2011/65/EU) | Compliant |
| REACH | Compliant |
