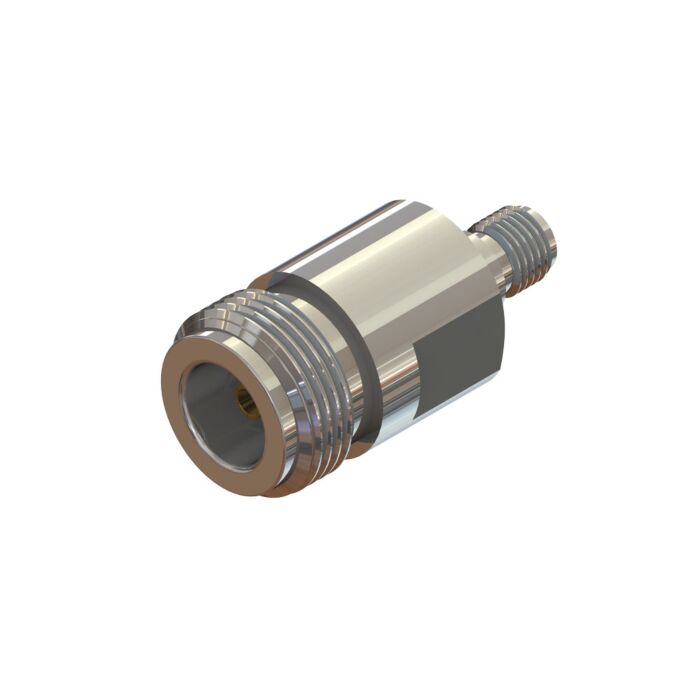

Cal Test Electronics CT3322A N-Type female to SMA female Adapter

Cal Test Electronics CT3322A

Order # CT3322A

Mfg # CT3322A

call-regular 800-828-1470
$74.36
Loading...
Loading...
  • Overview
  • Technical Resources
  • Specifications

Cal Test Electronics CT3322A

Order # CT3322A | Mfg # CT3322A
$74.36
arrow_drop_down

Tariff fees or manufacture imposed surcharges may be applicable.

Overview

Product Highlights

The CT3322A in an Instrument Grade coaxial adapter which provides that next level of measurement confidence. The grade provides tighter tolerances and better materials for improved performance in critical measurements. It is that cost effective middle-ground between general-purpose and very expensive metrology grade.

  • Accuracy
  • Low VSWR
  • Flat frequency response
  • Repeatability
  • Cost effectiveness

Technical Resources

Cal Test Electronics CT3322A Product Drawing

Specifications

Connector Grade Instrument
Body and Coupling Nut Brass, White Bronze
Center Contact BeCu, Gold Plated
Dielectric PTFE
Impedance 50 Ω
Frequency DC to 18 GHz
Insulation Resistance 5,000 MΩ Min
Dielectric Withstanding Voltage 1,000 V Max @ Sea Level
VSWR 1.20:1 @ DC - 18 GHz
Temperature Range -55°C to + 165°C
RoHS 2(2011/65/EU) Compliant
REACH Compliant
