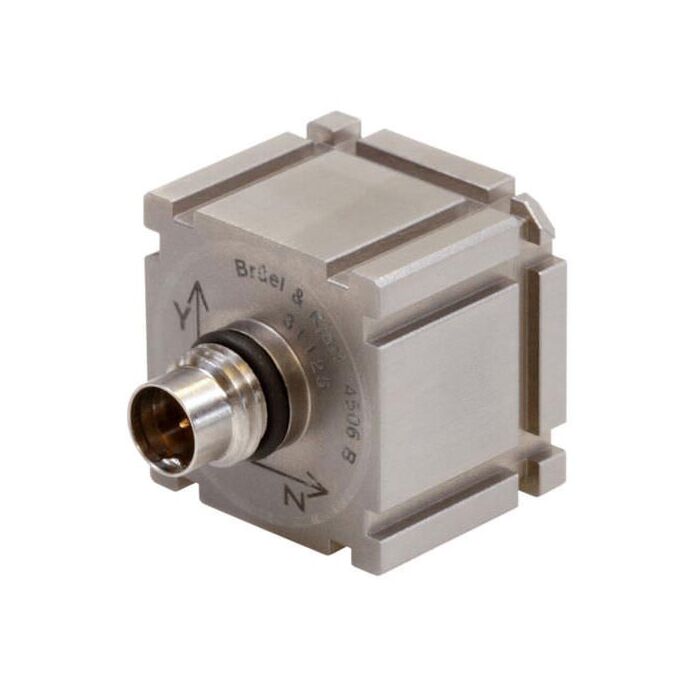

Bruel & Kjaer 4506 Highlights
The 4506B - Miniature triaxial piezoelectric CCLD accelerometer cable is a device that features an ID (TEDS) "Smart Transducer Interface" IEEE P1451.4, five mounting surfaces. It is easily fitted to different test objects using economical plastic mounting clips, and constructed with a robust titanium housing with integrated titanium Microtech compatible 4-pin connector.
It is also equipped with a compact, patented OrthoShear design giving high sensitivity/weight ratio (the unique uni-mass construction ensures that all axes have the same point of reference) with a low output impedance that enables long cable usage. It has a built-in low-noise preamplifiers with ASICs for a dynamic range exceeding 100 dB (100 mV/g sensitivity), an electrically insulated for ground loop protection and a connection directly to CCLD power supply (ICP® compatible) that allows the use of inexpensive cables.
- Technology: piezoelectric
- Number of axes: triaxial
- Protection level: robust
- Other characteristics: with TEDS, small-size, high-sensitivity, miniature
- Frequency: Min.: 0.6 Hz / Max.: 3000 Hz
