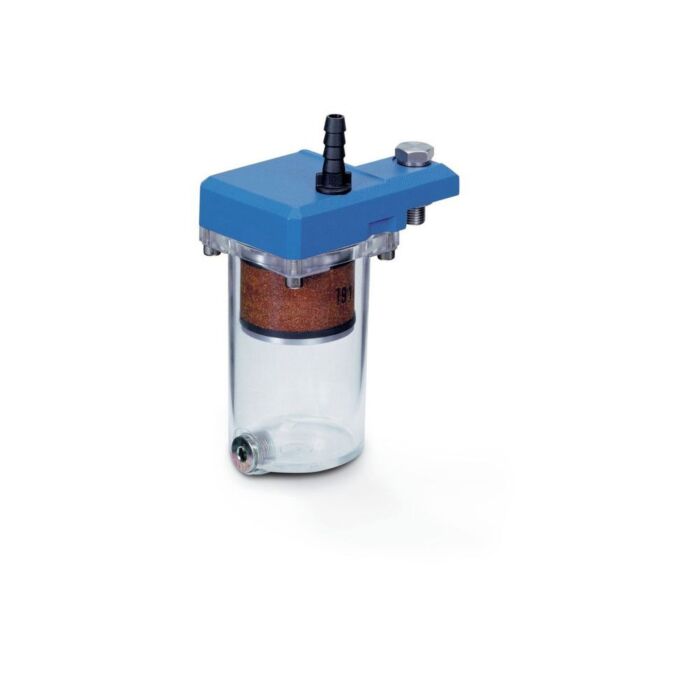

BrandTech 20698003 Oil mist filter for RE2, RZ2, RE5, RZ5, RE2.5, RZ2.5, RE6,RZ6

BrandTech Scientific 20698003

Order # 20698003

Mfg # 20698003

call-regular 800-828-1470
$1,289.86
Loading...
Loading...
  • Overview
  • Specifications

BrandTech Scientific 20698003

Order # 20698003 | Mfg # 20698003
$1,289.86
arrow_drop_down

Tariff fees or manufacture imposed surcharges may be applicable.

Overview

Product Highlights

Exhaust gases from oil-sealed rotary vane pumps always carry a certain quantity of oil mist. This is extremely unpleasant, and even harmful, for those working nearby. VACUUBRAND oil mist filters separate nearly 100% of oil mist at the ultimate vacuum of the pump. In case of reduced lifetime of the filter element due to solvents in the oil we recommend filter elements made of ceramics (on request).

  • Very high degree of separation
  • Optimal control by transparent catchpot
  • Easy draining of oil
  • Direct mounting on the oil reservoir outlet
  • Integrated pressure relief valve for burst protection in case of blocked filter

Specifications

Technical data and graphs

Ambient Temp., Upper Limit (°C) 40 °C
Ambient Temp., Lower Limit (°C) 10 °C
Dimension L (mm) 119 mm
Dimension B (mm) 80 mm
Dimension H (mm) 181 mm
Outlet Connection Directly Mountable
Inlet Connection Hose Nozzle DN 10 mm
For VACUUBRAND Pumps RE 2, RZ 2, RE 2.5, RZ 2.5, RE 5, RZ 5, RE 6, RZ 6
Permissible Volume Flow Rate 6 m3/h
Volume Catchpot 180 ml
