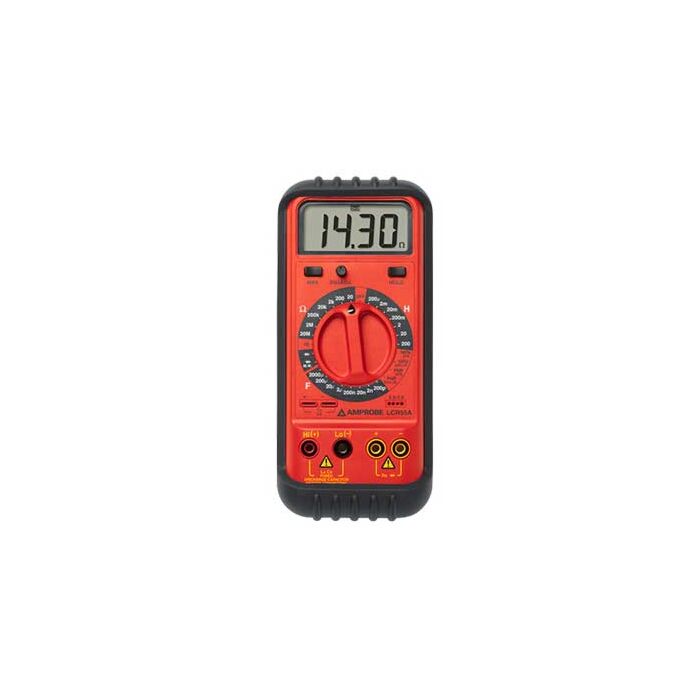

Amprobe LCR55A
LCR Meter With Transistor Test

Order #: LCR55A

Mfg #: 3026976

Questions about availability or need help? Contact Us:

(800) 633-0561
Special Price $476.88 Regular Price $535.83

Amprobe LCR55A

LCR Meter With Transistor Test

Order #: LCR55A

Mfg #: 3026976

Special Price $476.88 Regular Price $535.83
Availability: Ships in 3-4 weeks

Product Highlights

  • Model LCR55A has 28 control positions to measure a wide range of component values
  • Measure Inductance with seven ranges from 200 µH to 200H
  • Achieve a resolution of 0.1 µH in the 200 µH range
  • The Capacitance feature has eight ranges from 200 pF to 20 mF
  • It provides resolution of 0.1 pF in the 200 pF range
  • Measure resistance with seven ranges from 20O to 20 MO, its extremely fine resolution is 0.01O in the 20O range
  • Meter allows you to zero out stray capacitance or resistance with a front panel control
  • LCR55A also tests diodes, including microwave diodes and has test socket for transistor testing
  • Model LCR55A has a large 0.7” LCD display

Each Unit Includes

  • Protective holster
  • Test leads
  • Alligator clips
Win a Generac Generator when purchasing $750 or more from Transcat.Win a Generac Generator when purchasing $750 or more from Transcat.
Maximum resistance detected20 megaohms
Maximum capacitance detected2,000 microfarads
Maximum inductance detected200 henrys (H)
Power supply9V NEDA 1604, JIS 006P, or IEC 6F22 transistor battery (one, installed)
Fuse0.1 amp/250V fuse (one installed, one spare)
Standards metEuropean Conformity (CE), International Electrotechnical Commission (IEC) and European Normal (EN) 61010-1, N10140 Australia
Weight11 oz./311 g
Dimensions7.2 x 3.1 x 1.5 inches/183 x 79 x 38 mm (H x W x D)
