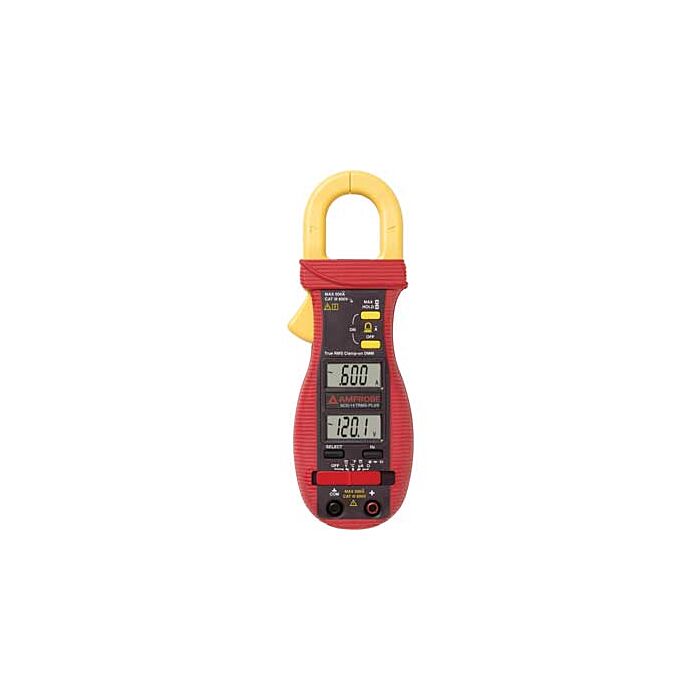

Amprobe ACD-14 PLUS

Product Highlights

• Dual Displays – Permits simultaneous reading of Amperage & Voltage
• AC Current to 600A
• New thin jaws, 5mm thinner than others to access tight measurement spaces
• Micro Amps measurement for testing Flame Sensors
• Capacitance to 3000 µF
• Temperature with Type-K Thermocouple probe
• AC and DC Voltage to 600V
• Resistance to 40M?
• Continuity Buzzer
• Frequency measurement
• Diode test
• Hold and Maximum reading functions
• In rush current
• Accommodates conductors up to 28 mm (1.1”) in diameter
• Auto ranging
• Auto power off and low battery indication
• Rubber over-molded case
• Battery Life: 95 hours approx. (in DCV mode)
• Size: L190mm X W 63mm X H 32mm (L 7.48” X W 2.48” X H 1.25”)
• Weight: 204 g (0.450 lb approx.)
• Safety: CE EN61010-1, EN61010-2-032 - Pollution Degree 2

Each Unit Includes

• Test Leads
• Carrying Case
• Bead Type
• Thermocouple with banana plug
• Users Manual
