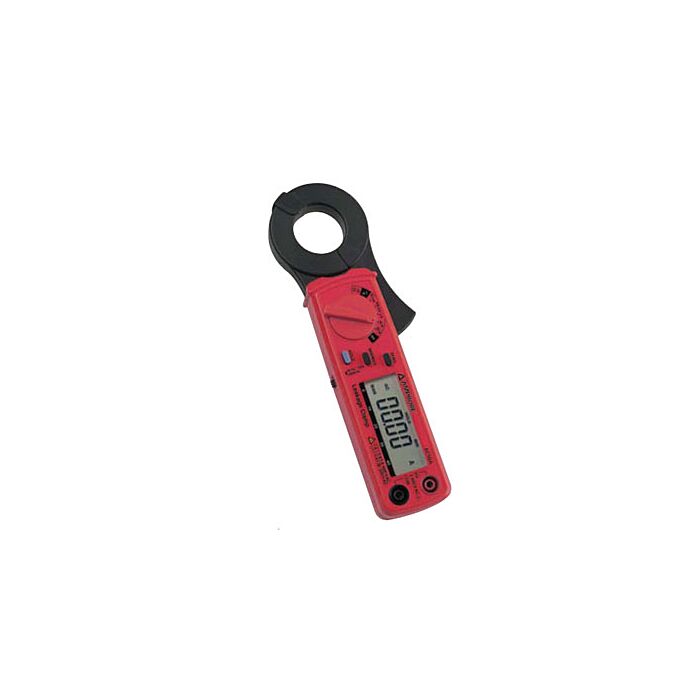

Amprobe AC50A
AC Leakage Clamp

Order #: 45999EL

Mfg #: 3033017

Questions about availability or need help? Contact Us:

(800) 633-0561
Special Price $814.87 Regular Price $915.59

Amprobe AC50A

AC Leakage Clamp

Order #: 45999EL

Mfg #: 3033017

Special Price $814.87 Regular Price $915.59
Availability: Ships in 3-4 weeks

Choose Your Options:

Add Calibration

You have chosen to add the following Calibration Services to Your Order

Make sure your instrument is calibrated and ready to use the minute you open the box by adding our expert calibration service. Why Calibrate? For a complete descriptions of Transcat Service Levels, click here.

Already have this this item and need calibration? Request a calibration quote

This product is available for shipping to the United States, Canada, and Puerto Rico only.

Product Highlights

  • AC current measurement to 60A
  • Leakage current measurement with resolution of 0.01mA
  • AC voltage to 400V
  • Resistance measurement and continuity beeper
  • Min/Max control to see largest or smallest values in a series of measurements
  • Relative value measurement to determine differentials
  • Data Hold to freeze measurement value on the display
  • Digital display with Analog bargraph
  • Jaw opening 30 mm (1.2 in)
  • Auto-Power-Off to save battery life
  • Minimum Resolution 0.01mA
  • Display: 3-3/4, LCD incl. functions and symbols
  • Bargraph: 40 segments
  • Range Selection: manual
  • Auto-Power-Off: approx. 30 min.
  • Overload display: the left digit is blinking
  • Measuring rate: 20 measurements/sec. (Bargraph), 2 measurements/sec. (LCD)
  • Clamp opening: ca. 30 mm (1.2”)
  • Overvoltage Categorie: CAT II, 600 V, CAT III, 300 V
  • Pollution degree: 2
  • Height above MSL.: up to 2000 m, indoor operation
  • Battery display: at low battery
  • Power supply: Battery 2 x 1,5 V IEC LR6 (alkaline)
  • Current Consumtion: approx. 10 mA
  • Operation temperature: -10° C … 50° C (14° F... 122° F)
  • Storage temperature: -20° C … 60° C (-4° F... 140° F)
  • Humidity: < 75 % relative humidity

Each Unit Includes

  • Batteries
  • Carrying case test leads
  • Users manual
