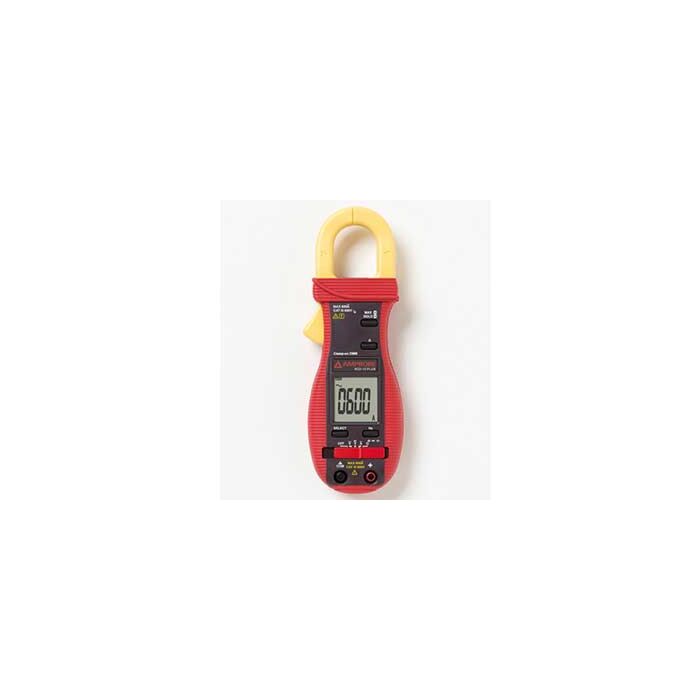

Amprobe ACD-10 PLUS
Digital Clamp-on Multimeter

Order #: 45951EL

Mfg #: 3037808

Questions about availability or need help? Contact Us:

(800) 633-0561
Special Price $162.18 Regular Price $182.23

Amprobe ACD-10 PLUS

Digital Clamp-on Multimeter

Order #: 45951EL

Mfg #: 3037808

Special Price $162.18 Regular Price $182.23
Availability: Ships in 3-4 weeks

Product Highlights

The Amprobe ACD-10 PLUS clamp multimeter has thinner jaws than standard digital clamp multimeters (only 0.4"/10mm thick) allowing access to tight measurement areas and still handles conductors up to 1.0 (25mm).

It combines the convenience and flexibility of an AC/DC current clamp meter with the most frequently used digital multimeter functions, including ac/dc current and voltage, capacitance, and frequency.

  • Measures AC and DC voltage to 600V and AC current to 600A to handle residential/commercial and small industrial applications
  • Thin jaws, only 10mm (0.4") thick make it easier to maneuver between tightly packed conductors
  • Measures frequency, resistance, and capacitance
  • Features continuity beeper to quickly find opens and shorts
  • Accommodates conductors up to 1.0" (25mm) in diameter
  • Auto ranging saves time by instantly selecting correct range
  • Auto power off to conserve battery life
  • Rubber over-molded case absorbs shock
  • Includes test leads, battery (installed), soft carrying pouch, and users manual
Win a Generac Generator when purchasing $750 or more from Transcat.Win a Generac Generator when purchasing $750 or more from Transcat.
ACD-10 PLUSACD-10 TRMS-PLUS
True-rms - ·
AC Voltage 4.000 V, 40.00 V, 400.0 V, 600 V
DC Voltage 400.0 mV, 4.000 V, 40.00 V, 400.0 V, 600 V
AC Current 40.00 A, 400.0 A, 600 A
Resistance 400.0 µΩ, 4.000 Ω, 40.00 Ω, 400.0 Ω, 4.000 MΩ, 40.00 MΩ
Capacitance 500.0 nF, 5.000 F, 50.00 CF, 500.0 µF, 3000 µF
Frequency 40 Hz ? 400 Hz with Jaw, 10 Hz ? 100 kHz with test leads
Temperature - -
Dual displays - -
Micro Amps - -
Accommodates conductors up to 1.0" (25 mm) in diameter
