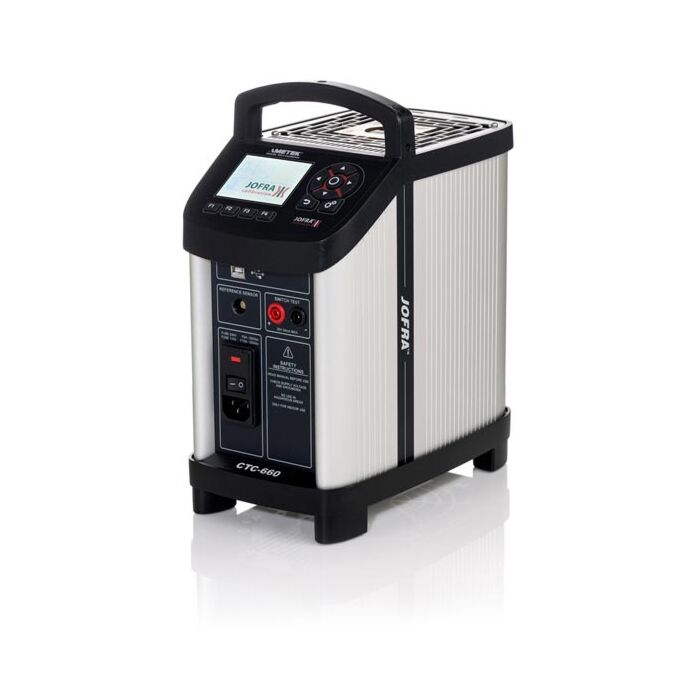

Ametek - Jofra CTC660 Dry Block Calibrator

Order # CTC660

$8,394.40

In stock

Currently a configured instrument on this page is sold at list price. Add to quote to receive your Transcat customer pricing.

The Ametek Jofra CTC Series is a fast, time-saving, reliable dry block temperature calibrator designed for on-site use. The large color display is easy-to-read and provides icons and information regarding the status of the calibrator and the calibration in process. Popular functions like automatic switch test and auto stepping are available with special one-key-one-function buttons. Speed, portability, cleanliness, and wide temperature range are all superior over liquid bath systems With the use of the optional external reference probe, this is the most accurate industrial class temperature calibrator on the market. CTC Series is available in three versions. The CTC660 handles temperatures ranging from 28° to 660°C (82° to 1220°F).

Tariff fees or manufacture imposed surcharges may be applicable.

Overview

Product Highlights

Temperature range from -25 to 1205

Technical Resources

Ametek-Jofra CTC-155, CTC350 & CTC660 Datasheet
Ametek-Jofra CTC-155, CTC350 & CTC660 User Manual
Ametek JOFRA Temperature Calibrator Overview

Specifications

Temperature Specifications
Temperature Range
Range	28 to 660°C / 82 to 1220°F
Lowest calibration temperature	ambient +5°C / 41°F
Accuracy
CTC-660 with internal ref. sensor	±0.85°C /±1.53°F
CTC-660 with STS-120	±0.45°C /±0.81°F
Stability	±0.08°C / ±0.14°F
Radial Homogeneity (difference between holes)	0.1°C / 0.18°F
Settings
Resolution	1 or 0.1 or 0.01
Units	°C or °F or K
Heating Time
23 to 660°C / 73 to 1220°F	18 minutes
Cooling Time
660 to 100°C / 1220 to 212°F	39 minutes
100 to 50°C / 212 to 122°F	18 minutes
Time to Stability (typical)	5 minutes
Mains Power Specifications
Voltage	115 V (90-127) / 230 V (180-254)
Max Power Consumption	1150 VA
Frequency, US deliveries	60 Hz ±3
Frequency, non US deliveries	50 Hz ±3, 60 Hz ±3
Physical Specifications
Dimensions LxWxH	248x148x305 mm / 9.761x5.83x12.01 in
Weight	6.1 kg / 13.4 lb
Immersion Depth	115 mm / 4.53 in
Well diameter	26 mm / 1.02 in
Insert Dimensions (diameter x length)	25,7 mm x 120 mm / 1.01 x 4.72 in
Electrical Specifications
Switch Input (dry contact)
Test Voltage	Maximum 14 VDC
Test Current	Maximum 1 mA
Digital Interface	USB 2.0
Environmental Specifications
Operating Temperature	0 to 50°C / 32 to 122°F
Storage Temperature	-20 to 50°C / -4 to 122°F
Humidity	5 to 90% Rh, non-condensing
Protection Class	IP-10
External reference sensor
STS-120-A-966	0 to 660°C /32 to 1220°F
Accuracy
Hysteresis (@ 0°C / 32°F)	0.01°C / 0.018°F
Long Term Stability (@ 0°C / 32°F)	0.014°C / 0.025°F
Repeatability	0.004°C/ 0.007°F
Sensing Element	Type PT100
Response Time
STS-120-A: t0.5 (50%)	8 sec.
STS-120-A: t0.9 (90%)	26 sec.
Dimensions
Diameter	4 mm / 0.157 in
Length	151 mm / 5.96 in
Max. height over calibrator top	25 mm / 0.94 in
