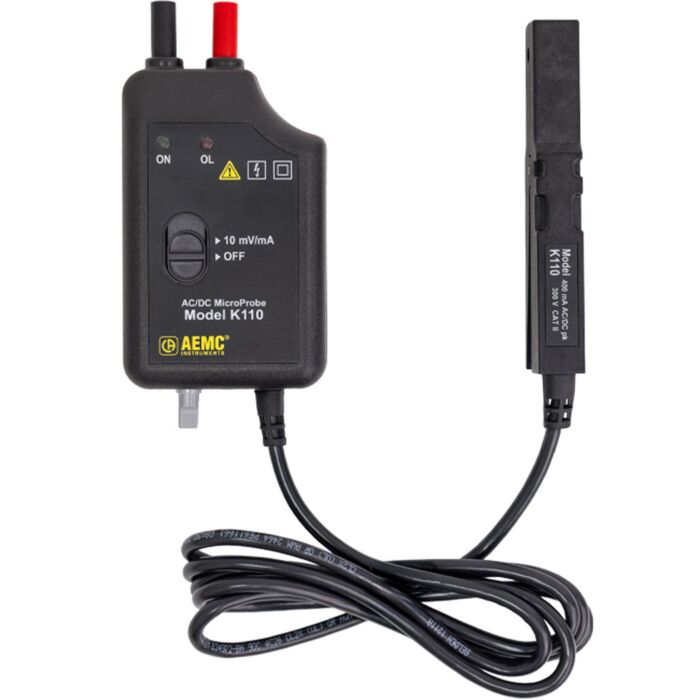

AEMC Instruments K110 AC/DC MicroProbe, 50mA

The K110 AC/DC Microprobe is built for the low end. It reads currents as low as 50 µA DC (150 µA AC) up to 400 mA peak - AC and DC - and outputs 10 mV per mA. That's ten times the signal-per-amp of a standard AC/DC clamp, giving you cleaner waveforms on your oscilloscope and finer resolution on your DMM in the ranges where every microamp counts. Same slim jaw as the K100 probe. Same non-intrusive clamp-on measurement. Different scaling - tuned for the bench, the R&D lab, and the process-control loop where low-current accuracy is everything.

• High-gain 10 mV/mA output
• Sub-milliamp resolution
• Scope-ready waveform capture
• True AC and DC in one probe
• Non-intrusive 4-20 mA loop verification
• Slim jaw for crowded wiring

Applications

• Electronics R&D Test Labs
• Industrial & Process Control
• Battery & Low-Power Electronics

Each Unit Includes

• AC/DC Microprobe Model K110, 450mA (K110)
