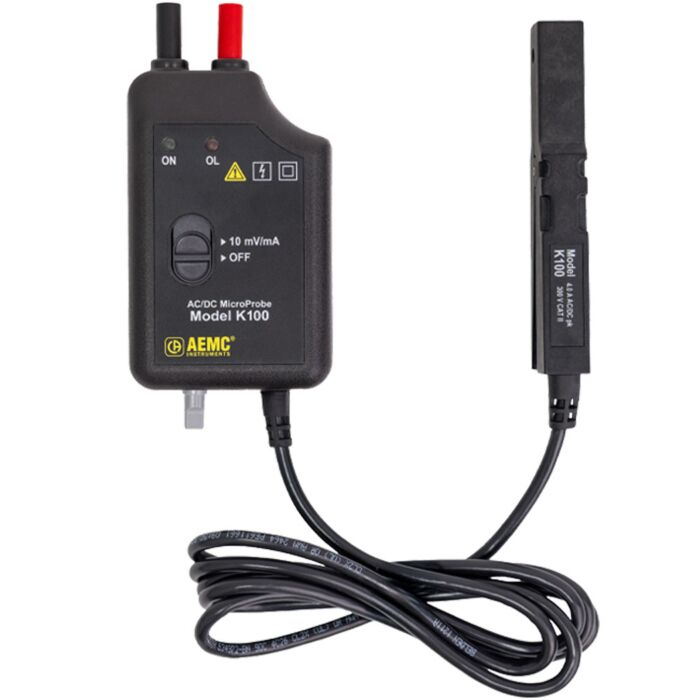

AEMC Instruments K100 AC/DC MicroProbe, 4.5A

The K100 AC/DC microprobe reads currents as low as 100 µA DC (200 µA AC) up to 4 A peak - AC and DC - without breaking the circuit. No range switching. No mode toggling. No proprietary display. Clamp the conductor, plug the banana leads into any DMM, and read what your standard AC/DC clamp shrugged off as noise. Most general-purpose AC/DC clamps bottom out somewhere in the milliamps. The K100 gets you roughly a hundred times lower - into the parasitic-draw, sleep-mode, and 4-20 mA loop territory where the readings actually matter.

• Microamp-class sensitivity
• True AC and DC in one probe
• Non-intrusive 4-20 mA loop verification
• Slim jaw for crowded wiring
• Works with the devices you already own
• Clean 1 mV per mA scaling

Applications

• Automotive Electronics
• Industrial & Process Control
• Battery & Low-Power Electronics

Each Unit Includes

• AC/DC Microprobe Model K100, 4.5A (K100)
