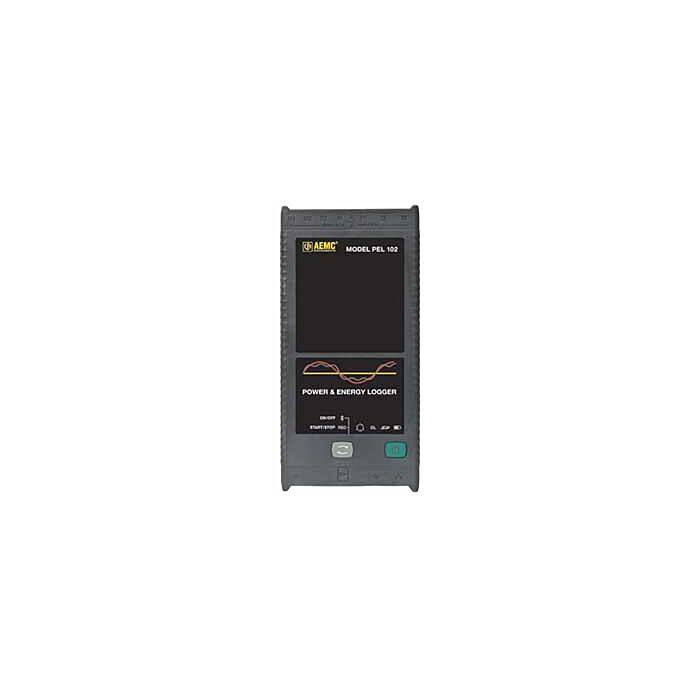

AEMC PEL 102
Power & Energy Logger No LCD, No Sensors

Order #: 2137.61

Mfg #: 2137.61

Questions about availability or need help? Contact Us:

(800) 633-0561
Special Price $2,314.20 Regular Price $2,436.00

AEMC PEL 102

Power & Energy Logger No LCD, No Sensors

Order #: 2137.61

Mfg #: 2137.61

Special Price $2,314.20 Regular Price $2,436.00
Availability: Ships in 1-2 weeks

Choose Your Options:

Add Calibration

You have chosen to add the following Calibration Services to Your Order

Make sure your instrument is calibrated and ready to use the minute you open the box by adding our expert calibration service. Why Calibrate? For a complete descriptions of Transcat Service Levels, click here.

Already have this this item and need calibration? Request a calibration quote

Product Highlights

  • Measurement of RMS voltages and currents at 128 times per cycle and stored every second
  • Measurement of VA, W and var power values (total and per phase) stored every second
  • Measurement of VAh, Wh and varh energy values (total and per phase) per second with source/load indication
  • Calculation of the cos f Displacement Power Factor (DPF) and the Power Factor (PF) stored every second
  • Calculation of Total Harmonic Distortion (THD)
  • Measurement, calculation and display of the harmonics up to the 50th order for 50/60 Hz and 7th order for 400Hz
  • Measurement of the DC quantities (RMS calculation)
  • Electrical network quantities are stored on a removable SD-Card
  • Automatic recognition of the connected current sensors
  • DataView software for configuration, data retrieval and real-time viewing of measurements with a PC
  • Compact and rugged case
  • Versatile communication interface choices built in (USB, Ethernet, Bluetooth)

Each Unit Includes

  • Small Classic Tool Bag
  • 5' USB Cable
  • Four Black Test Leads and Alligator Clips
  • Power cord
  • 12 Color-coded ID Markers
  • Multifix Mounting System
  • Safety Card for the PEL
  • Sensor Compliance Sheet
  • 2 GB SD Card with USB SD Card Reader
  • USB Stick with Dataview
  • Quick Start User Guide
  • User Manual
Win a Generac Generator when purchasing $750 or more from Transcat.Win a Generac Generator when purchasing $750 or more from Transcat.
  1. AEMC 2140.48 Miniflex Sensor 10"
    AEMC MA193-10BK
    Miniflex Sensor 10"

    Order #: 2140.48

    Mfg #: 2140.48

    Availability: Ships in 1-2 weeks
    Special Price $365.75 Regular Price $385.00
  2. AEMC MA193-14-BK
    AEMC MA193-14-BK
    MiniFlex Sensor for Models 8220 3945-B,8230,8333,8336,8435,PEL

    Order #: 2140.50

    Mfg #: 2140.50

    Availability: Ships in 1-2 weeks
    Special Price $397.67 Regular Price $418.60
  3. AEMC MR193-BK AC CurrentProbe,1000AAC/1400ADC
    AEMC MR193-BK
    AC CurrentProbe,1000AAC/1400ADC

    Order #: MR193-BK

    Mfg #: 2140.28

    Availability: Ships in 1-2 weeks
    Special Price $650.37 Regular Price $684.60
  4. AEMC SR193-BK
    AEMC SR193-BK
    AC Current Probe, 10' Leads

    Order #: 2140.33

    Mfg #: 2140.33

    Availability: Ships in 1-2 weeks
    Special Price $543.97 Regular Price $572.60
  5. AEMC 193-24-BK AmpFlex Sensor, 24"
    AEMC 193-24-BK
    AmpFlex Sensor, 24"

    Order #: 193-24-BK

    Mfg #: 2140.34

    Availability:
    In stock
    Special Price $425.60 Regular Price $448.00
  6. AEMC 2140.35 Ampflex Sensor, 36"
    AEMC 193-36-BK
    Ampflex Sensor, 36"

    Order #: 2140.35

    Mfg #: 2140.35

    Availability:
    In stock
    Special Price $492.10 Regular Price $518.00
  7. AEMC MN93-BK AC Current Probe, 200A
    AEMC MN93-BK
    AC Current Probe, 200A

    Order #: MN93-BK

    Mfg #: 2140.32

    Availability: Ships in 1-2 weeks
    Special Price $319.20 Regular Price $336.00
  8. AEMC MN193-BK AC Current Probe, 5A/100A
    AEMC MN193-BK
    AC Current Probe, 5A/100A

    Order #: MN193-BK

    Mfg #: 2140.36

    Availability: Ships in 1-2 weeks
    Special Price $437.57 Regular Price $460.60
All products in this series
