Revolutionize Tower Grounding Assessment with Our Innovative Kit!

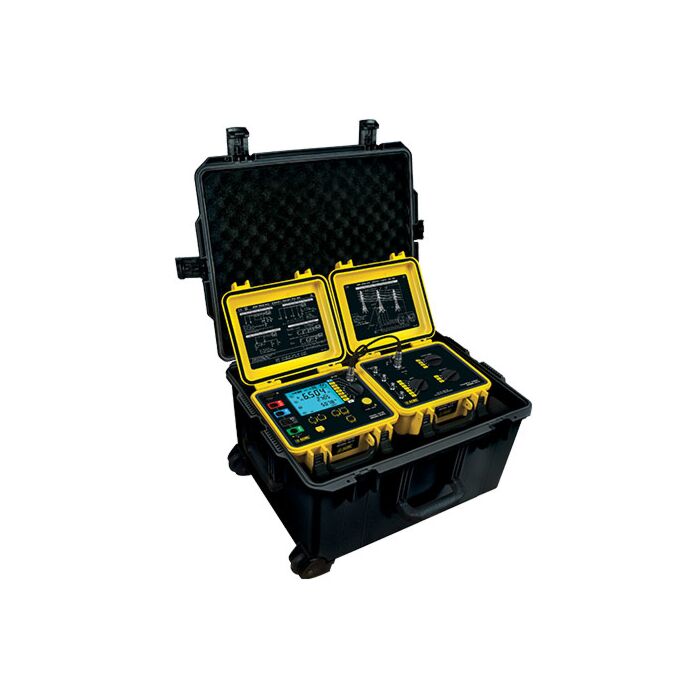

Power transmission towers play a critical role in meeting the demands of millions of consumers. Ensuring the safe and efficient flow of electricity requires cutting-edge tools, and we present the perfect solution: The GroundFlex Field Kit Tower Ground Resistance Testing System.
Reliable, Accurate, and Quick Comprehensive Testing
Model 6472, coupled with the advanced Model 6474 GroundFlex Adapter, forms a robust ground resistance testing system. Now, testing energized Tower Systems is not just easy but exceptionally accurate. Test towers with one to four legs effortlessly, measuring current flow for precise resistance calculations - all WITHOUT disconnecting the overhead ground wire!
Exceptional Features for Unmatched Performance
- Flexible Sensors: Wrapped around each tower leg, these sensors provide accurate, high-sensitivity measurements that surpass other techniques.
- Comprehensive Testing: Measure traditional ground parameters, including Fall-Of-Potential, soil resistivity, bonding, and earth coupling. Determine overhead ground conductor quality and conduct tests at selected frequencies or across the full range for lightning strike analysis.
- Data Management: Store up to 512 complete measurements in internal memory, downloadable for analysis and report generation using AEMC's FREE included DataView software.
- Portability and Durability: Housed in rugged, water-resistant polycarbonate cases and packaged in a field travel case that doubles as a workstation, this kit is designed for the field.
Operational Versatility and Cost-Efficiency
- Power Options: Operate on batteries, AC power, or 12V DC, even while being charged.
- No Tower Isolation: Assess grounding resistance without disconnecting or isolating the tower from other structures, resulting in significant time and cost savings.
- Rapid Return on Investment: The innovative system pays for itself in just a few months, offering a cost-efficient solution for power transmission, cellular, windmill, and other towers.
- Safety: This system was designed to prioritize safety of the workers in the field by enabling comprehensive ground resistance testing on energized towers, eliminating the need for tower isolation and minimizing risks associated with traditional testing methods.
Features At a Glance
- Multi-function testing capabilities
- Impedance analysis at frequencies from 41 Hz to 5 kHz
- Wide measurement range with optimum resolution
- Rejection of interference voltages up to 60V peak
- Automatic calculation of ground coupling coefficient and resistivity
- Measure leakage current and stray voltage
- Recording of results
Choose the GroundFlex Field Kit Tower Ground Resistance Testing System for unparalleled accuracy, efficiency, and cost savings in assessing the grounding resistance of vital towers. Elevate your testing capabilities with a system designed for the challenges of the modern electrical landscape.
NOTE: The GroundFlex Adapter Model 6474 can only be used with the Ground Tester Model 6472 Kit - 500 ft.
