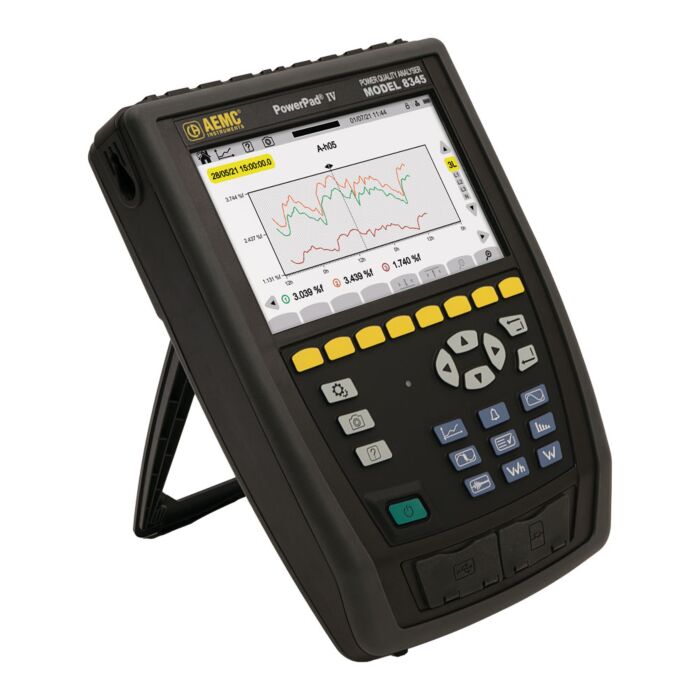

AEMC Instruments 8345 for Rent, PowerPad® IV Power Quality Analyzer, with Flex CTs, 12000A

Order # 8345-RENT1 | Mfg # 2136.37

For Rent

Tariff fees or manufacture imposed surcharges may be applicable.

Overview

Product Highlights

PowerPad IV, with 4 Miniflex MA193-24-BK Flexible Current Sensors

Full compliance with IEC 61000-4-30 ed. 3.0 Class A functions
Voltage quality diagnostics
Real-time display of color waveforms (5 voltage/4 current) from 1 cycle to 10/12 cycles
Calculation of unbalance (current and voltage)
Automatic recognition of different current sensors
Capture shockwaves up to 12 kV with a resolution of 500 ns
Trend recording period from 200 ms to 2 hrs
RMS and Peak InRush for up to 30 mins
Display of phasor diagrams
Waveforms at 512 samples per cycle, with Min/Max 2.5 ?s
True InRush capabilities to study loads during setup
Parameterization with software for True RMS single-, two and three-phase measurements at 512 samples/cycle, plus DC
Records and stores hundreds of parameters in memory every 10/12 periods
Measurements and recordings accessible on 7 inch color touch screen display
True RMS voltage and current measurement
Measurements on all installation types: three-phase, Aron connection, etc.
Electrical network monitoring with setting of alarms
Fast transient events are captured and stored in memory
Communication options: Webserver, Wi-Fi, Ethernet and USB
Power W, VA and VAR (P, N, Q1, S and D) measurements
Measurement of energy values (total and per phase) with energy valuation
PF, DPF, CF and THD calculations and measurements
Calculation so Pst & Plt flicker and sliding Pst
Harmonics (amplitude/phase shift) from DC to the 63rd order
Inter-harmonic subgroups from 0 to the 62nd order
Calculations of K factor & FHL
2 carrier current frequencies monitored

Each Unit Includes

Meter
Extra-large tool bag
Internal carrying pouch
Hand strap
(4) MA193-24-BK sensors
USB cable
(5) 10 ft black voltage leads with alligator clips
(12) color-coded input ID markers
Power adapter (PA32ER) with US power cord
(2) 6 ft stackable leads
(2) 10 ft black voltage leads with alligator clips for power adapter PA32ER
(1) power plug adaptor for PA32ER
5.8 Ah Li-ion battery pack
Quick start guide
USB stick with DataView® software
User manual

Technical Resources

AEMC 8345 Datasheet

Specifications

ELECTRICAL
Inputs	5 x voltage / 4 x current, isolated
Voltage	5 V to 1,000 VAC and VDC
Trend Recording	> 900 parameters
Sampling Rate	Voltage 400 kSps / Current 200 kSps / Surge 2 MSps
Alarm mode (types/number)	Yes, 52 / 20,000 with Email notifications
Real-time mode	Yes
Power Mode	Yes
Energy Mode	Yes
Unbalance Mode	Composite
Harmonics Mode	DC to 63rd order; < 3% Udin
Interharmonics Mode	0 to 62nd order; < 0.5% Udin
Carrier Current Detection	Yes
Inrush Capture (number)	No maximum (limited by SD card)
Transient Capture (number)	No maximum (limited by SD card)
Shockwaves (Fast transient)	Up to 12 kV sampled every 500 ns
Flicker (Pst)	< 0,1
Voltage Unbalance (u0,u2)	0.5 to 5 % (absolute); µ0.15 % (absolute)
Screenshots	No maximum (limited by SD card)
Power Supply	Power from phase from 100 to 1000 V AC/DC with external supply block (included)
Battery	Cartridge LI-ION - 5800 Ah battery pack (included) ≤6 hrs w/ display on; ≤10 hrs w/ display off
MECHANICAL
Data Storage	16 GB SD-Card (included) for snapshot, transients, alarms and trend recording
Display	7 in color LCD touch screen: 800 x 480 (WV GA)
Clock / GPS	Yes, built-in
Operating Temperature	32 °F to 104 °F [+0 °C; +40 °C]
Communication	USB, Ethernet, Wi-Fi, Web server, IRD server, USB stick port (type A)
Dimensions	7.87 in x 11.22 in x 2.17 in (200 mm x 285 mm x 55 mm)
Weight (meter only)	4.19 lbs (1.9 kg)
SAFETY & COMPLIANCE
Safety	IEC 61010 1000 V CAT IV
Ingress Protection	IP54
Environmental Compliance	IEC 61557-12 & IEC 62586
Measurement Standard	IEC 61000-4-30 (Ed 3) Class A (Full)
EN50160 Monitoring Mode	With PAT3 software
Warranty	*3 years (registration must be done within 30 days of the date of purchase)
