AEMC Instruments 205 Power Clamp-on Meter,1000VAC/DC

Power Clamp-on Meter,1000VAC/DC (TRMS,Ohms,Continuity,THD,Powe

Order #: 2139.40

Mfg #: 2139.40

New

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Special Price $525.35 Regular Price $553.00

Availability: Call for availability

Choose Your Options:

New Purchase Calibration

None

Calibration without Data + $193.00

Accredited Calibration with Data + $252.00

Accredited Calibration with Data & Uncertainties + $330.00

Add Calibration

Qty

Product Overview

Product Highlights

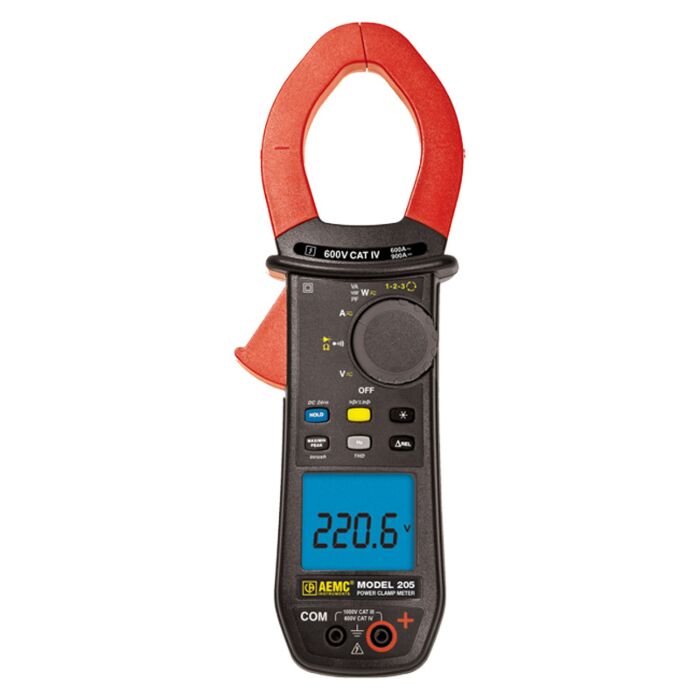

Clamp-on Meter Model 205

The True RMS Clamp-On Meter Model 205 is safety rated at 600V CAT IV. It measures AC+DC volts and amps, frequency, continuity, resistance, power and Power Factor, phase rotation, and THD. It can also perform diode checks. The Delta relative function compares new measurements to a reference value, and the MIN/MAX function tracks high and low values. The Model 205 also tracks peak+ and peak- values. This compact and rugged meter can operate in demanding work environments.

Specifications

Voltage Range:	1000Vrms AC/DC/AC+DC Auto-ranging
Resolution Max:	0.01V
Current Range:	600Arms AC, 900ADC
Resolution Max:	0.01A
Accuracy V Typical:	1% ± 3cts
Accuracy A Typical:	1% ± 3cts
InRush:	6 to 600AAC, 6 to 900ADC
Power Measurement Max:	600kW AC, 900kW DC
THD:	Yes, %f and %r
Continuity:	Selectable from 0 to 599.9Ω
Resistance:	60kΩ
Diode Test:	0 to 3.2VDC
Frequency:	20kHz in V, 3kHz in A
Power Factor:	Yes
Phase Order:	Yes
MIN/MAX/PEAK-/PEAK+	Yes
ΔREL:	Yes
Power Source:	1 x 9V, IEC LF22
Battery Life:	>120 hours
Dimensions:	8.7 x 3.0 x 1.65" (222 x 78 x 42mm)
Weight:	12.0 oz. (340g) with battery
Jaw Opening:	1.34" (34mm)
Operating Temperature:	-4° to +131°F (-20 to +55°C)
Storage Temperature:	-40° to +158°F (-40 to +70°C)
Operating Humidity:	90% up to 131°F (55°C)
Pollution Degree:	2
Ingress Protection:	IP40
EMC:	EN61326-1
Safety Compliance:	EN/IEC 61010-1: 1000V CAT III, 600V CAT IV EN/IEC 61010-2-030:2010 EN/IEC 61010-032:2002
