Accurate Thermal Systems ATS3080

Order # ATS3080 | Mfg # ATS3080
$4,268.55
arrow_drop_down

Tariff fees or manufacture imposed surcharges may be applicable.

Overview

Product Highlights

  • Laboratory performance at an economical price
  • Lightweight and portable for use in the field
  • Removable probe inserts for flexibility & many probe sizes
  • Store & recall up to 8 calibration setpoints
  • CE marked for safety
  • 120V Model

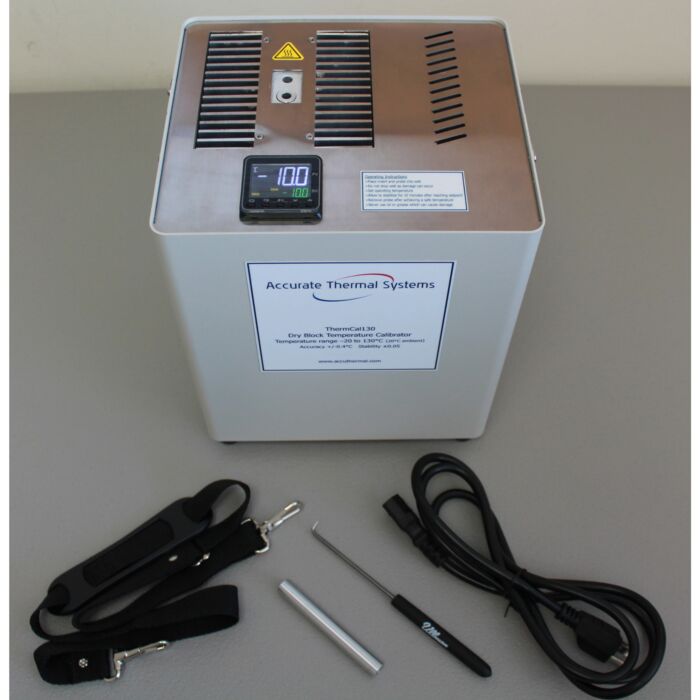

Each Unit Includes

  • ThermCal130 calibrator
  • Fixed 1/4" reference hole
  • Carrying strap
  • Insert removal tool
  • Does NOT Include Insert - choose from below
  • Mains cable
  • Traceable calibration certificate

Technical Resources

Accurate Thermal Systems ThermCal130 Instruction Manual

Specifications

Temperature range

(ambient of 20°C) -20°C (-4°F) to 130°C (266°F)

Accuracy

 0.4°C

Stability

±0.04C

Heat up time

-20 to 130°C 8 minutes
20 to 100°C 3 minutes

Cool down time

20 to -20°C 9 minutes
130 to 20°C 4 minutes

Probe well depth & insert diameter

4” depth by 1/2” diameter

Power consumption

150 watts

Overall dimensions

10.2” H x 9” W x 8” L

Weight with insert

17 pounds

Warranty

2 years
