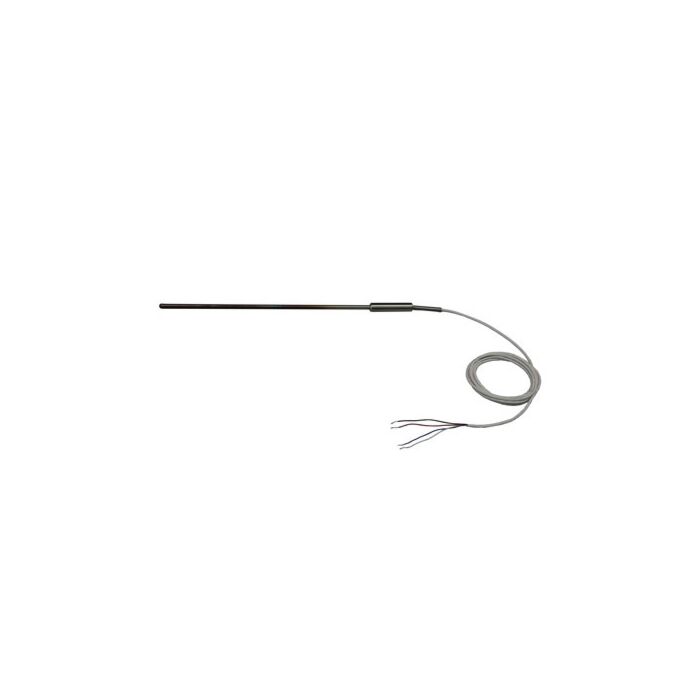

AccuMac AM1730-9-P FOR RENT Secondary Reference PRT,-60C to 300C,9"Probe w/Smart Connector

AccuMac AM1730-9-P for Rent, Secondary Reference PRT, -60C to 300C, 9"Probe with Smart Connector

Order # AM1730-9-P-RENT1

Mfg # AM1730-9-P-RENT1

call-regular 800-828-1470
$0.00
  • Overview
  • Technical Resources
  • Specifications

AccuMac AM1730-9-P for Rent, Secondary Reference PRT, -60C to 300C, 9"Probe with Smart Connector

Order # AM1730-9-P-RENT1 | Mfg # AM1730-9-P-RENT1

Request a Rental Quote

Have a Question? Speak to a Transcat Rental Expert: 800.264.4059

Tariff fees or manufacture imposed surcharges may be applicable.

This product is available for shipping to the United States, Canada, and Puerto Rico only.

Overview

Product Highlights

AM1730 series Secondary Reference PRT provides our customers an affordable reference probe for precision temperature measurement and calibration in labs and fields. The PRT features accuracy of ±0.015°C, short term stability of ±0.007°C. Two different lengths of PRTs are available at 9-inch and 12-inch.

To reach the best performance in stability and repeatability, the sensing element is specially designed to protect the platinum sensing wire from contamination at high temperature. A unique support structure and filling material provide the best balance among the hysteresis effect, mechanical shock and thermal shock performance. This high performance probe meets ITS-90 criteria of reference thermometer fully.

  • Temperature range: -200 °C to 420 °C
  • Accuracy: ±0.015 °C
  • Long term drift: ±0.01 °C
  • Short term stability: 0.007 °C
  • Durable and shock resistance
  • Temperature Coefficient 0.003925
  • W(Ga)>=1.11807
  • Inconeltm sheath
  • Customized dimensions available

Technical Resources

Accumac AM1730 Series Datasheet
Accumac AM1730 Series User Guide

Specifications

Temperature Range 1730-12: -200 °C to 420 °C
1730-9: -60 °C to 300 °C
Resistance at 0 °C Nominal 100 Ω
Temperature Coefficient 0.003925 Ω/ Ω/°C
Accuracy ±0.025 °C at -196 °C
±0.015 °C at 0.01 °C
±0.035 °C at 420 °C
Drift ±0.01 °C at TPW after 100 hours at 420 °C
Short Term Stability ±0.007 °C
Thermal Shock ±0.005 °C after 10 times thermal cycles from minimum to maximum temperatures
Hysteresis <=0.005 °C
Self-heating 50 mW/°C
Response Time 9 seconds for 63% response to step change in water moving at 3 feet per second
Measurement Current 0.5 mA or 1 mA
Sensor Length 32 mm
Sensor Location 5 mm from tip
Insulation Resistance >1000 MΩ at room temperature
Sheath Material Inconeltm
Dimension 1730-12: 0.25 inch X 12 inch (6.35 mm X 305 mm)
1730-9: 0.187 inch X 9 inch (4.75 mm X 229 mm)
External Leads Teflontm -insulated copper wire, 4 leads, 2.5 meters
Handle Dimension 1730-12: 15 mm (OD) x 65 mm (L)
1730-9: 10 mm (OD) X 50 mm (L)
Handle Temperature Range* -50 °C to 180 °C
