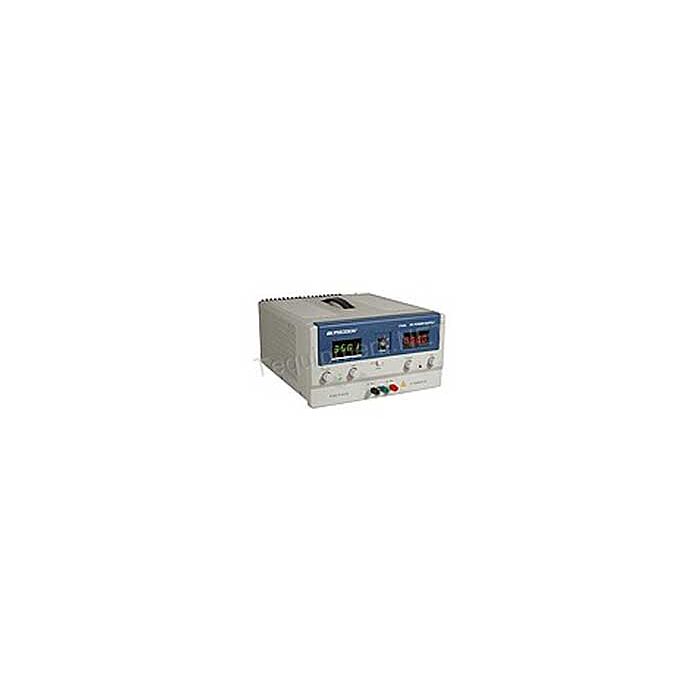

BK Precision 1745A

Product Highlights

• 0 to 35V, 0 to 10A DC Power Supply
• All of the great features and performance you would expect from a B+K Precision power supply
• Four digit LED disply that allows you to see 10mV and 1mA resolution
• Output shorting button that allows the user to short the output terminals to set the current limit
• Output Voltage 0 to 35 VDC, Coarse and fine adjustment
• Output Current 0 to 10 A
• Constant Voltage Operation
• Voltage Regulation Line (108 - 132): <0.2% + 2mV
• Load (no load to full load): <0.04% + 2mV
• Recovery Time <100us typical
• Ripple Voltage RMS <1mV
• Temperature Coefficient 0º to +40ºC <300 PPM/ºC
• Constant Current Operation
• Adjustable Current Limits 5% to 100%
• Current Regulation Line: (108 - 132V) <0.4% + 5mA
• Load: <0.4% + 5mA
• Current Ripple <3mA typical
