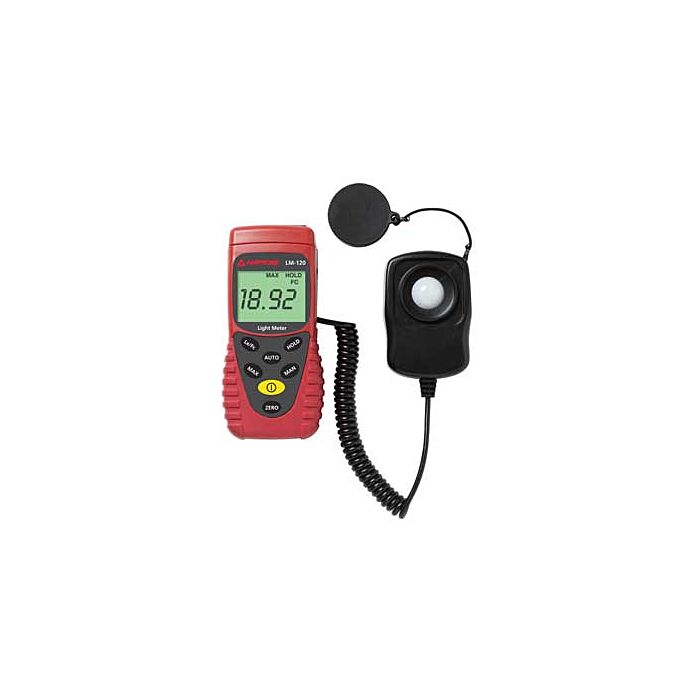

Amprobe LM-120
Light Meter with Auto Ranging

Order #: LM-120

Mfg #: 3052353

Questions about availability or need help? Contact Us:

(800) 633-0561
Special Price $328.00 Regular Price $368.55

Amprobe LM-120

Light Meter with Auto Ranging

Order #: LM-120

Mfg #: 3052353

Special Price $328.00 Regular Price $368.55
Availability:
In stock

Choose Your Options:

Add Calibration

You have chosen to add the following Calibration Services to Your Order

Make sure your instrument is calibrated and ready to use the minute you open the box by adding our expert calibration service. Why Calibrate? For a complete descriptions of Transcat Service Levels, click here.

Already have this this item and need calibration? Request a calibration quote

This product is available for shipping to the United States, Canada, and Puerto Rico only.

Product Highlights

  • Measure in Lux or Footcandles, front panel switchable
  • Measuring Range to 200,000 Lux or 20,000 Foot candles
  • Silicon photodiode sensor and filter
  • Data Hold to freeze reading on the digital display
  • MIN / MAX ability to show high and low readings
  • Autoranging plus Manual Range
  • Zero function to null display before a reading
  • Auto Power Off to save battery life
  • Large, 3-1/2 digit display
  • Battery Life: 200 hours
  • Size: base: 130 x 63 x 38 mm (5.1 x 2.5 x 1.5”) Sensor: 80 x 55 x 29 mm (3.2 x 2.2 x 1.1”)
  • Weight: 220 g (.48 lb.) include battery
  • Safety: CE EMC
  • Illumination: Accuracy at 23°C ± 5°C (73.4°F ± 5°F), < 75% R.H.
  • Sensor: Silicon photodiode and filter
  • Range: 20, 200, 2000, 20000, 200000 Lux
  • Range: 20, 200, 2000, 20000 Foot candles
  • Display: 3¾ digit liquid crystal display (LCD) with a maximum reading of 1999
  • Power Supply: 9V NEDA 1604, IEC 6F22, JIS 006P battery

Each Unit Includes

  • Protective sensor cap
Win a Generac Generator when purchasing $750 or more from Transcat.Win a Generac Generator when purchasing $750 or more from Transcat.
Range 0 lux, 200 lux, 2,000 lux, 20,000 lux, 200,000 lux, 20 fc, 200 fc, 2,000 fc, 20,000 fc
Sampling rate 2.5 times per second for digital display
Accuracy + or - 3 percent (calibrated to standard incandescent lamp at 2,856 degrees K), + or - 6 percent for other visible light sources
Angle deviation from cosine, 30 degrees + or - 2 percent
Angle deviation from cosine, 60 degrees + or - 6 percent
Angle deviation from cosine, 80 degrees + or - 25 percent
Polarity Automatic, positive implied, negative polarity indication
Operating temperature 14 to 104 degrees F (-10 to 40 degrees C) at less than 80 percent relative humidity
Storage temperature 14 to 122 degrees F (-10 to 50 degrees C) at 0 to 70 percent relative humidity
Dimensions Base is 5.1 x 2.5 x 1.5 inches/130 x 63 x 38 mm, sensor is 3.2 x 2.2 x 1.1 inches/80 x 55 x 29 mm (H x W x D)
Weight .48 lb. (220 g) (including battery)
Standards Japanese Industrial Standard (JIS) C1609:1993 and CNS 5119 general A-class specifications, and European Community Directives: 89/336/EEC (Electromagnetic Compatibility) and 73/23/EEC (Low Voltage) as amended by 93/68/EEC (CE Marking)
