The SL306 AC/DC Current Probe – a compact Hall-effect current clamp designed to measure both AC and DC currents with high accuracy. The probe's narrow jaws are designed to easily clamp around conductors in tight, crowded wiring spaces, allowing for non-intrusive current measurements without breaking the circuit, making it ideal for industrial and automotive environments. It offers dual sensitivity settings, enabling precise measurements from just a few milliamps up to 80 A, with a 20 kHz bandwidth.
Powered by an internal battery or a standard 5V DC power adapter via its micro-USB port, the SL306 features automatic DC zero adjustment and a built-in standby function to extend battery life. The SL306 adapts to your power preferences, ensuring it's ready whenever you are.

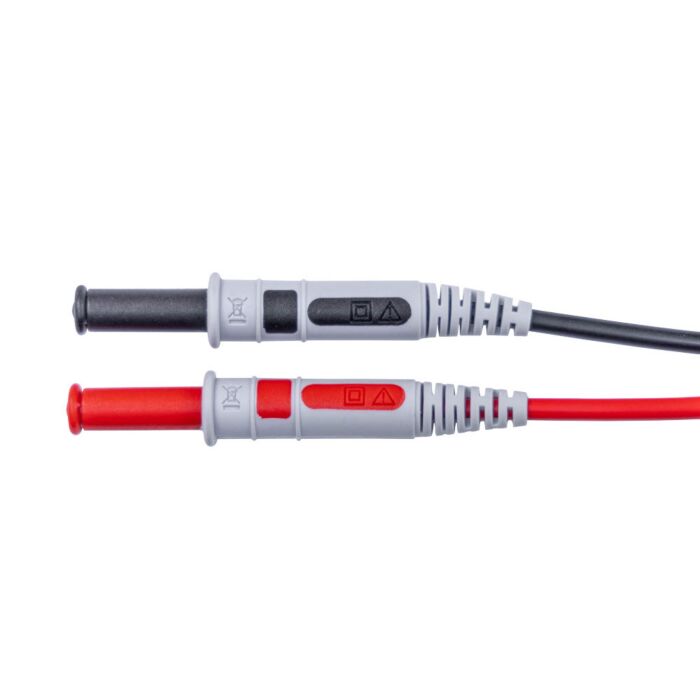

The AC/DC Current Probe Model SL306 is universally compatible. Its cord is equipped with 2 insulated male banana plugs allowing it to be connected to and compatible with any AEMC® and non-AEMC® digital multimeters, voltmeters, or any voltage-measuring instruments.
- SL 306 is compatible with meters featuring banana inputs
- Compact and portable design makes it easy to access hard-to-reach spaces
- Nominal Range: 1.5A AC/2A DC, 60A AC/80A DC
- Measurement Range: 5 mA to 1.5A AC/2A DC, 50 mA to 60A AC/80A DC
- Output Signal: 1 mV/mA (1 V/A) over 2A range, 10 m/VA over 80A range
- Automatic standby mode after 10 minutes of inactivity to prolong battery life (can be disabled)
- Overload indicator that prevents damage to the device when the current exceeds the measurement capacity
- Wide jaw opening accommodates large conductors (up to 0.46 in (11.8 mm) in diameter)
- DC zero adjustment function to eliminate offset errors before each measurement
- 9 V battery or external 5 V power via micro-USB (up to 80 hours with alkaline battery)
- Safety standard 600 V CAT III and 300 V CAT IV
- Precise measurements with low uncertainty, accuracy of ±2% for 2 A range and ±4% for 80 A range (Model SL306)
Each Unit Includes
- SL306 SL Series AC/DC Current Probe with Male Banana Plugs, 2A, 1 mV/mA and 80A, 10 mV/A
- 9V (6LR61) Alkaline Battery
- User manual
