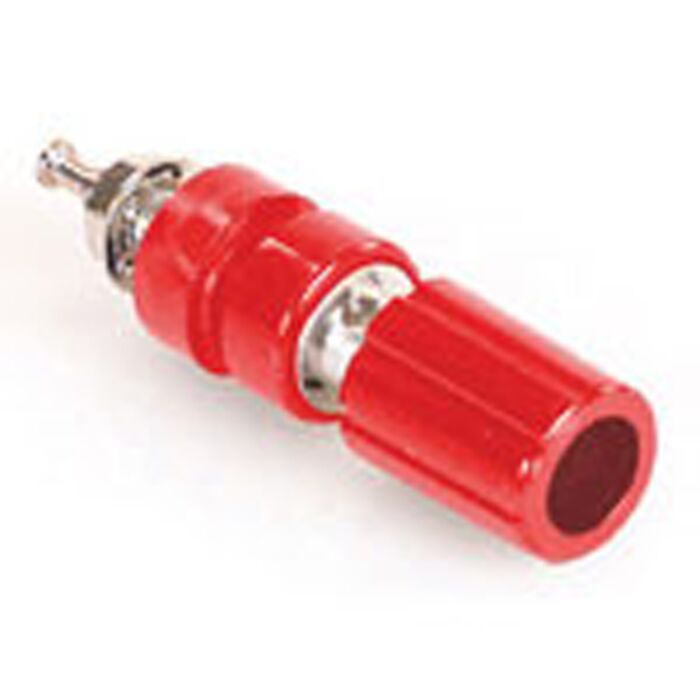

Pomona 3760-2

Product Highlights

Features:

• Mounts in panels from 1.57mm (.062") to 6.35mm (.250") thick.
• Crosshole is perpendicular with flat on mounting base.

Materials:

• Insulated Captive Thumb Nut: Brass
• Insulation: Polycarbonate
• Mounting Base: Polycarbonate
• Insulator: Polycarbonate
• Lockwasher: Steel
• Hex Nut: Brass
• Binding Post Finish: Bright tin plated brass

Ratings:

• Operating Voltage: Hand-held testing: 30VAC/60VDC Max.
• Hands free testing in controlled voltage environments: 2500 WVDC Max.
• Operating Temperature: +115°C (+239°F) Max.
• Current: 15 Amperes
