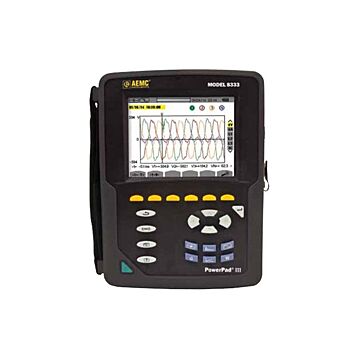

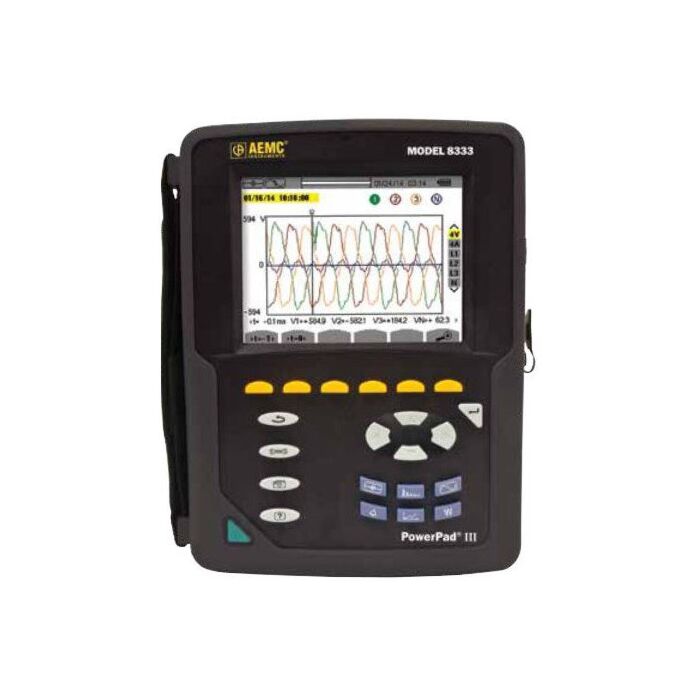

AEMC Instruments 8333 PowerPadIII 3-Phase Power Quality Analyzer

Product Highlights

• True RMS Single-, Two- and Three-PhaseMeasurements at 256 Samples/Cycle, Plus DC
• Real-Time Color Waveforms
• Easy-to-Use On-Screen Setup
• Automatic Current Probe Recognition and Scaling
• True RMS Voltage and Current Measurement
• Measures DC Volts, Amps and Power
• Displays and Captures Voltage, Current and Power Harmonics to 50th Order, Including Direction, in Real-Time
• Captures Transients Down to 1/256th of a Cycle
• Stores Comprehensive Data Base of Logged Data
• Phasor Diagram Display
• VA, Var And W Per Phase and Total
• kVAh, VARh and kWh Per Phase and Total
• Neutral Current Calculated and Displayed for Three-Phase
• Transformer K-Factor Display
• Power Factor, Displacement PF Display
• Captures Up to 51 Transients
• Short and Long Term Flicker Display
• Phase Unbalance (Current and Voltage)
• Harmonic Distortion (Total and Individual) from 1st to 50th
• Alarms, Surges and Sags
• Screen Snapshot Function Captures Waveforms or Other Information on the Display

Each Unit Includes

• Dataview® Software for Configuring Data Storage
• Real-Time Display
• Analysis and Report Generation
