Starrett 656-12041J

Product Highlights

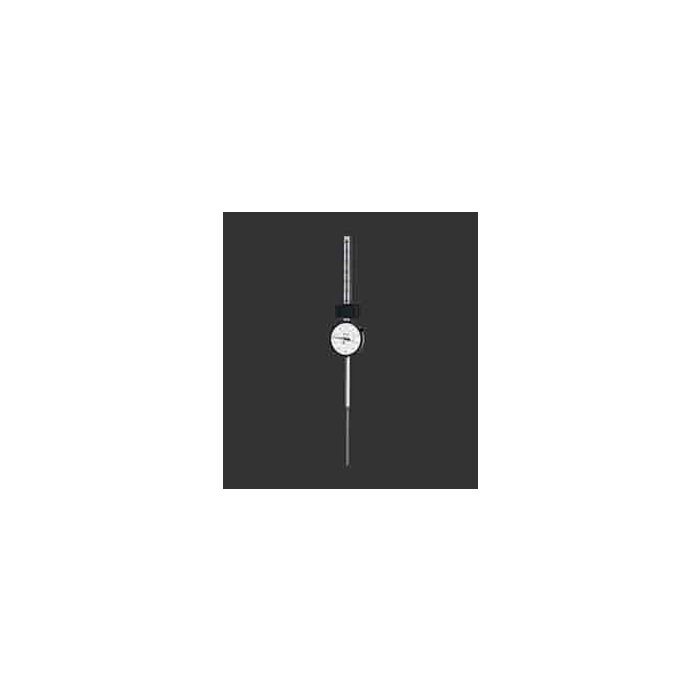

• Not actual product image
• Rugged and simple unit construction with a “universally fitting” design
• One gear unit assembly
• Non-reflecting yellow finish on dial
• Unbreakable crystal
• The gear unit is constructed of a massive single bridge and plate assembly with a hardened stainless steel gear train
• Massive bridge for rigid bearing support
• Hardened stainless steel bottom stems can be held in fixtures without cramping rack action
• Hardened stainless steel stem
• Hardened stainless steel rack and spindle
• Hardened stainless steel gears and pinions
• Shockless, hardened steel gear train and are furnished with jewel bearings and lug-on-center backs unless otherwise ordered
• The case is light but sturdy, with a hardened, precision stainless steel rack that rides in bronze bushings
• No-glare satin finish on case
• Direct acting compression spring eliminates side friction
• Conforms to AGD specifications except for range, stems and contact point
• Furnished with continuous reading double dial with direct reading count hands
• Easy readability with the best, balanced style of graduation and number combination
• Balanced and tapered hands are easy to follow
• Replaceable low friction jewel bearings
• All gear trains are fully jeweled for sensitivity, smoothness and life
• Graduations (in) .001"
• Total Range (in) 12.000"
• Range One Rev. (in) 0.100"
• Dial Reading 0-100
• Dial Color White
• Stem Diameter (in) .375"
