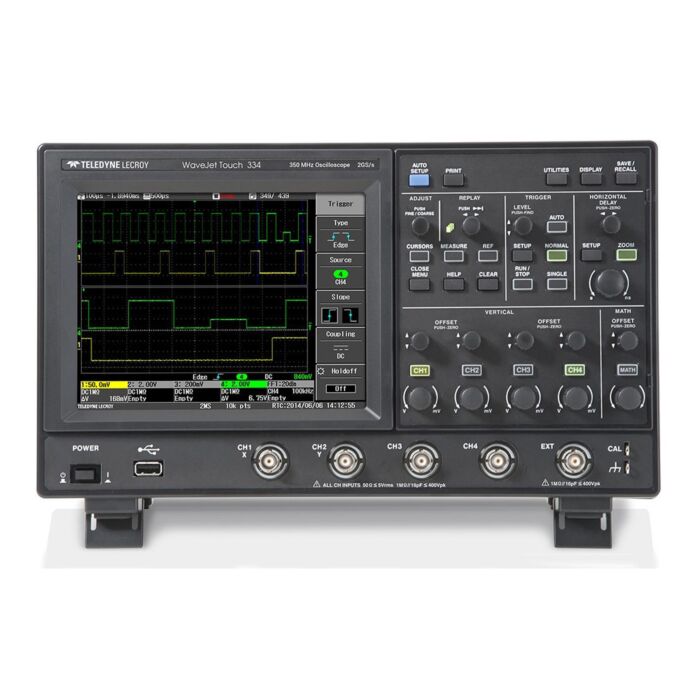

Used Lecroy 334T Oscilloscope, 350MHz, 4 Channel, 2GS/s
Order #
334T-USED
|
Mfg #
334T
Tariff fees or manufacture imposed surcharges may be applicable.
This product is available for shipping to the United States, Canada, and Puerto Rico only.
Overview
Product Highlights
- 350 MHz bandwidths
- Up to 2 GS/s sample rate
- Long Memory - up to 5 Mpts
- 7.5" touch screen display
- 26 measurement parameters
- Replay mode
- Standard Pass/Fail Mask and Measurement testing
- Standard I 2 C, SPI, and UART serial triggers
- Standard USB Host, USB Device,
- GPIB, and LAN connectivity
- Multi-language user-interface and help
- Ultra-quick boot time
Specifications
| Vertical |
| Bandwidth (@50 Ω) |
350 MHz |
500 MHz |
| Rise Time |
1 ns (typical) |
750 ps (typical) |
| Input Channels |
4 |
| Vertical Resolution |
8-bits |
| Sensitivity |
50 Ω: 2 mV/div - 2 V/div; 1M Ω: 2 mV/div - 10 V/div |
| DC Gain Accuracy |
±(1.5% of + 0.5% of Full Scale) |
| Bandwidth Limiting Filter |
200 kHz, 2 MHz, 20 MHz, 100 MHz |
| Maximum Input Voltage |
50 Ω: 5 Vrms; 1M Ω: 400 Vpk CAT I |
| Input Coupling |
50 Ω: DC, GND; 1M Ω: AC, DC, GND |
| Input Impedance |
50 Ω: ±1.0 %; 1M Ω: ±1.0% || 16 pF (typical) |
| Offset Range |
2 mV/div - 50 mV/div: ±1 V, 50.2 mV/div - 500 mV/div: ±10 V, 502 mV/div - 10 V/div: ±100 V |
| Offset Accuracy |
- 2 mV/div - 50 mV/div: ±(0.5% of offset value + 0.5% FS + 1 mV)
- 50.2 mV/div - 500 mV/div: ±(0.5% of offset value + 0.5% FS + 10 mV)
- 502 mV/div - 10 V/div: ±(0.5% of offset value + 0.5% FS + 100 mV)
|
| Acquisition |
| Sampling Rate (Single Shot) |
2 GS/s (interleaved), 1 GS/s (all channels) |
| Sampling Rate (Equivalent Time) |
100 GS/s |
| Record Length |
5 Mpts/Ch (interleaved), 2.5 Mpts/Ch (all channels) |
| Acquisition Modes |
Real Time, Peak Detect, Average, High Resolution |
| Real Time Timebase Range |
1 ns/div - 50 s/div |
500 ps/div - 50 s/div |
| Roll Mode Timebase Range |
50 ms/div - 50 s/div |
| Peak Detect Period |
1 ns |
| Timebase Accuracy |
10 ppm (typical) |
| Probes |
| Standard Probes |
10:1 Passive Probe (one per channel) |
| Probing System |
BNC with Probe Sense Ring |
| Trigger System |
| Modes |
Auto, Normal, Single, Stop |
| Sources |
Any input channel, External, Ext/10, or line |
| Coupling |
DC, AC, HFREJ, LFREJ, Noise Reject |
| Trigger Types |
Edge, Edge ALT, Edge OR, Pulse Width, Period, Pulse Count, Dropout, TV, Logic, I 2 C, SPI, UART |
| I2C |
Trigger on START, RESTART, STOP, ADDR, DATA, ADDR+DATA, Data Length, or Missing ACK. 7 or 10-bit ADDR are supported with full Read, Write, or R/W =
|
