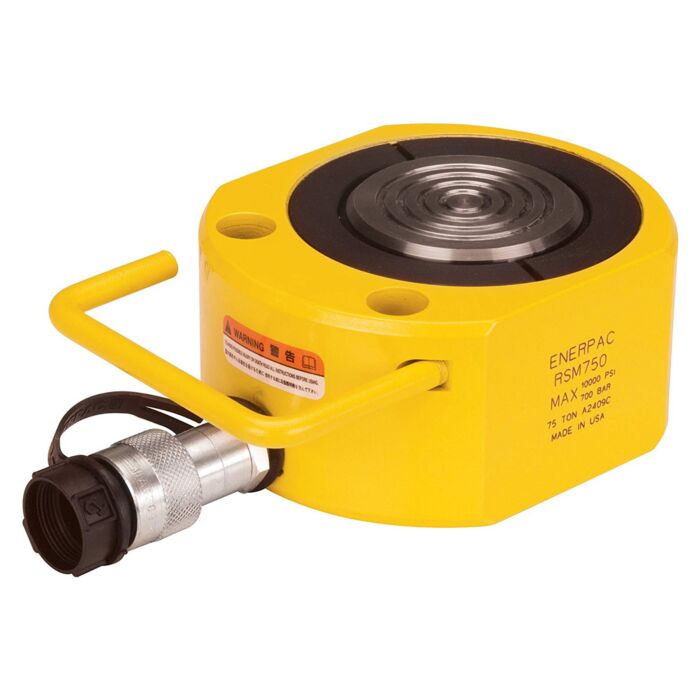

Enerpac RSM-750 75 Ton,Low Height Hydraulic Cylinder,16mm Stroke

Enerpac RSM-750 75 Ton, Low Height Hydraulic Cylinder, 16mm Stroke

Order # RSM750

Mfg # 302390

call-regular 800-828-1470
$2,920.40
  • Overview
  • Technical Resources
  • Specifications

Enerpac RSM-750 75 Ton, Low Height Hydraulic Cylinder, 16mm Stroke

Order # RSM750 | Mfg # 302390
$2,920.40

Tariff fees or manufacture imposed surcharges may be applicable.

Overview

Product Highlights

RSM-Series, Flat-Jac Cylinders. Compact, flat design for use where other cylinders will not fit. RSM-750, 1000 and 1500 have handle for easy carrying. Mounting holes permit easy fixturing. CR-400 coupler and dustcap included on all models. Hard chrome plated high quality steel plungers. Grooved plunger ends require no saddle. Single-acting, spring return.

  • Compact, flat design for use where other cylinders will not fit
  • Handles for easy carrying
  • Mounting holes permit easy fixturing
  • Baked enamel finish for increased corrosion resistance
  • CR400 coupler and dust cap included
  • Hard chrome plated high-quality steel plungers
  • Grooved plunger ends require no saddle
  • Single-acting spring return

Technical Resources

Enerpac RSM and RCS Series Datasheet

Specifications

Enerpac Model No. RSM-50/100 RSM-200 RSM-300 RSM-500 RSM-750 RSM-1000/1500
Cylinder Capacity (tons) 5/10 tons 20 tons 30 tons 50 tons 75 tons 100/150 tons
Stroke (in) .25"/.44" .44" .50" .63" .63" .63"/.63"
Cylinder Effective Area (in squared) .99/2.24 4.43 6.49 9.62 15.9 19.63/30.68
Collapsed Height (in) 1.28"/1.69" 2.03" 2.31" 2.63" 3.13" 3.38"/3.94"
Weight (lbs) 2.3 lbs/3.1 lbs 6.8 lbs 10 lbs 15 lbs 25 lbs 32/58 lbs
