Overview
Product Highlights

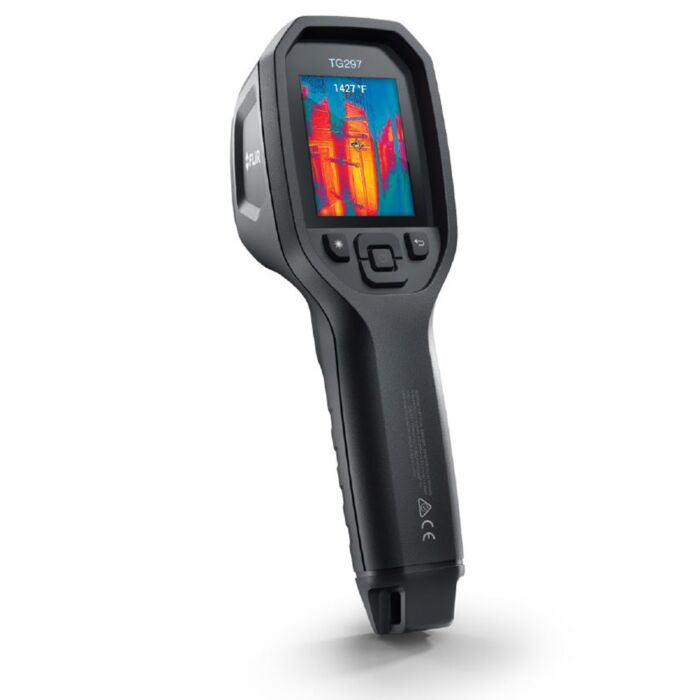

The FLIR TG297 is a one-of-a-kind industrial diagnostic tool that combines accurate temperature measurement with the ability to image up to 1030°C (1886°F). Patented FLIR MSX (Multi-Spectral Dynamic Imaging) enhancement improves image clarity by embossing visual scene details on full thermal images. The TG297 is ideal for high-temperature industrial uses such as measuring the heat of glass furnaces, kilns, and forges as well as manufacturing applications, allowing you to accurately target potential faults, troubleshoot repairs, and monitor processes. Record images to assure your team that machinery and systems are functioning safely and at peak efficiency.
Identify Problems Quickly
Outfit your toolbox with this combination non-contact temperature measurement and thermal imaging camera
Experience the difference you can make with a true 160 x 120 IR pixel imager (19,200 pixels)
High-temperature filter allows camera to measure and image temperatures up to 1030°C (1886°F)
Work from a safe distance while scanning high-temperature objects thanks to the 30:1 spot ratio
Identify the exact area that you're measuring using the bullseye laser pointer
IR Resolution: 160 × 120 pixels
Thermal Sensitivity/NETD: <70 mK
Accuracy: ±1.5°C (2.7°F) for temperatures 50°C to 100°C (122°F to 212°F); up to ±3°C (±5.4°F) for -25°C to 50°C (-13°F to 122°F) and 100°C to 1030°C (212°F to 1886°F)
Field of view (FOV): 57° × 44°
Image Modes: MSX® (Multi Spectral Dynamic Imaging), Visual with temperature reading
Display: 320 × 240 pixel, 2.4 in color LCD
Storage Media: eMMC 4 GB
Built-in Digital Camera: Yes
Color Palettes: Iron, Rainbow, White hot, Black hot, Arctic, Lava
Measure a wide range of temperatures from -25°C to 1030°C (-13°F to 1886°F) with a true 160 x 120 IR pixel imager (19,200 pixels)
Produce Crisp Thermal Images
See the detail needed to troubleshoot faults and gauge their severity
Diagnose problems faster with FLIR-patented MSX image enhancement
Display and capture thermal or visual images with temperature readings
Compare before-and-after stored images to demonstrate the problem and the repair
View thermal images in your preferred color palette on the bright 2.4-inch color display
Diagnose problems faster on extreme heat targets by engaging the high temperature filter over the lens to create a detailed image
Work with Confidence in Rugged Environments
Take the TG297 anywhere thanks to its portable design and protective IP54 enclosure
Work safely and worry-free knowing that the thermal imager can withstand a 2-meter drop
Peer into the darkness and hard-to-reach areas with the bright LED flashlight
Find this compact, durable imager in a crowded tool bag easily, thanks to the ergonomic handle design
Each Unit Includes
TG297
printed documentation
wrist strap lanyard
USB A to USB C cable
carry pouch
Please Note: Thermal Imaging Cameras are classified by the U.S. Department of Commerce as "dual use" instruments. Transcat is authorized to sell these instruments only in the United States and Canada. Diversion contrary to U.S. law is prohibited. To ensure that Thermal Imagers sold by Transcat do not go outside the US or Canada, we require a Dual Use Instrument End-User Certification Form to be filled out at time of purchase.
