The 1 Series DPO features up to 4 analog channels, 200 MHz bandwidth, 1.25 GS/s sample rate, 25 MHz AFG, frequency counter, digital voltmeter, advanced triggers, and protocol decode, all in a compact form factor. The 1 Series DPO has all the essentials you need to learn and work. With a capacitive touchscreen and a highly intuitive user interface truly designed for touch, the 1 Series DPO completes the Tektronix family of oscilloscopes with its shared user interface and the programmatic interface. This makes it even easier to use any Tektronix next generation oscilloscope.
- Bandwidth: 70 MHz
- Channels: 4 analog channels
- Includes: EDU software
- Display: 7-inch WVGA color display with 15 horizontal divisions, which allows for seeing 50% more signal detail
- Measurement and Analysis: 32 automated measurements and a dual-window FFT function for simultaneous time and frequency domain analysis
- Advanced triggers, including pulse, runt, and line triggers, which are useful for debugging digital designs
- Front-panel USB 2.0 host port for quick data storage, and a rear-panel USB 2.0 device port for connecting to a PC
Applications
- Education & Training
- Embedded Design & Debug
- Maker Community & Prototyping
- Field Installation & Maintenance
- General Electronics Service

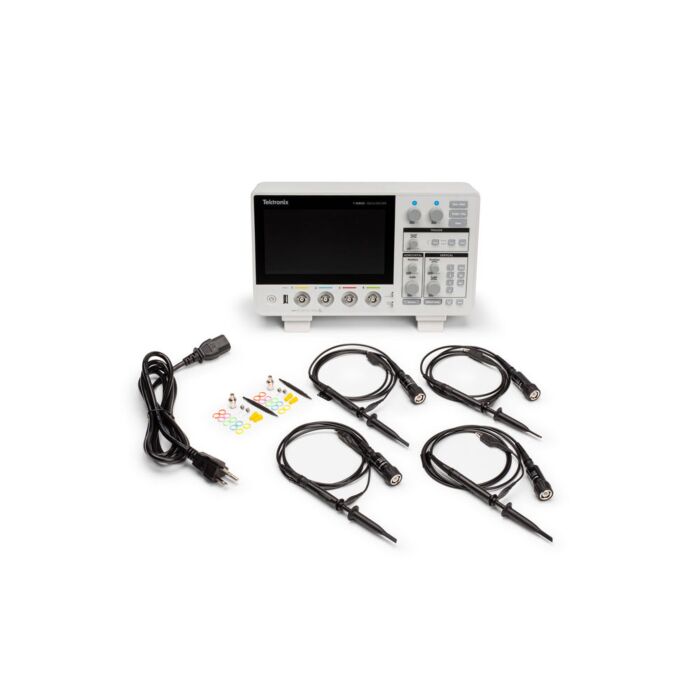

Each Unit Includes
- Digital Oscilloscope (DPO1074S)
- Installation and safety manual
- Embedded help
- Power cord
- Calibration certificate
