The Sorensen SGX Series modular DC power supplies represent the next generation of high-power programmable DC power supplies.
The SGX Series DC power supply is designed for exceptional load transient response, low noise, and the highest power density in the industry.
With a full 15kW available down to 20 V output in a 3U package, the SGX leads the industry in power density. The power density is enhanced by a stylish front air intake allowing supplies to be stacked without any required clearance between units.
At the heart of the SGX series DC output power supply is a 5kW power module. Depending on the output voltage, one to six modules can be configured in a single chassis to deliver 5kW to 30kW of power.
Combinations of these chassis can then be easily paralleled to achieve power levels up to 150kW. Paralleled units operate like one single supply providing total system current.
- Rated Power: 12 kW
- Output Voltage: 0-10 V DC
- Output Current: 0-1200 A
- Input Voltage: 440/480 V AC (3-Phase)
- Intuitive Touchscreen: Features a front-panel color touchscreen display and an encoder selector for quick access to programming parameters, sequencing, and measurements
- Advanced Sequencing: Allows users to program, store, and loop sophisticated test sequences natively without needing a separate system controller
- Scalable Power: The system is modular. While this specific unit delivers 12 kW, SGX chassis can be easily paralleled to achieve system power levels of up to 150 kW
- Fast Load Transient Response: Designed to protect delicate devices under test from unexpected voltage excursions
- Low Ripple and Noise: Provides stable, clean DC power tailored for sensitive semiconductor and electronics testing
- Standard & Optional Controls: Comes standard with LXI Ethernet and RS-232 interfaces for remote operation, with optional IEEE-488.2 GPIB and isolated analog control
Applications
- Burn-In
- Compliance Testing
- Materials Research
- Process Control
- Product Validation
- Automotive Electronics
- Rackmount ATE Systems
- Battery Charging
Each Unit Includes

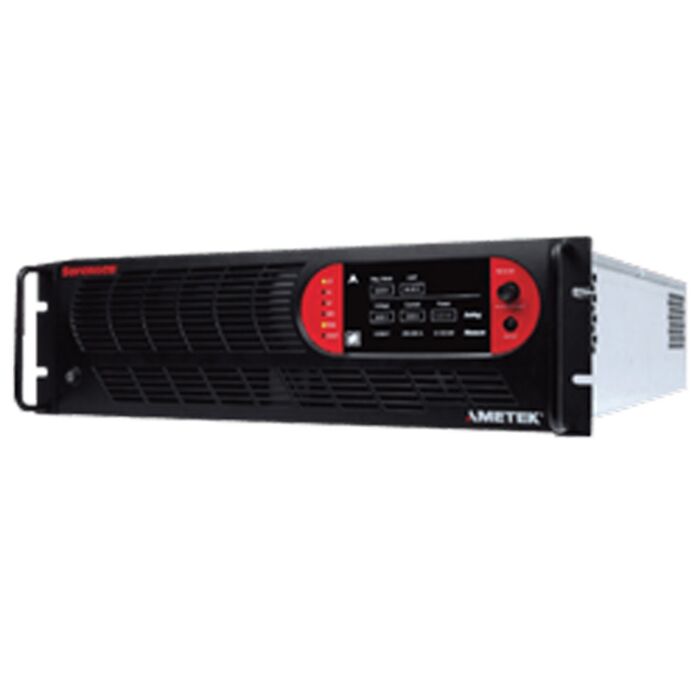

- Programmable SGX Series 12 kW DC Power Supply (SGX10X1K2C-0ASAR)
