Overview
Product Highlights

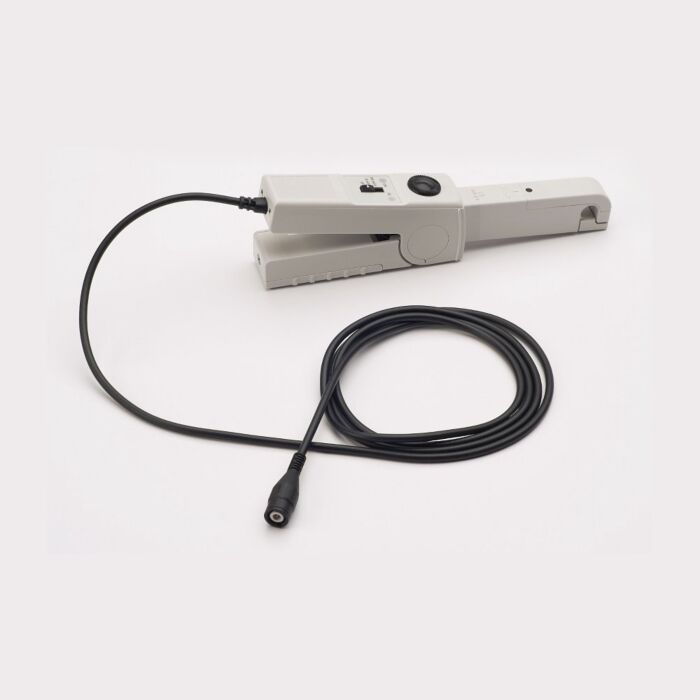

The 1146B is ideal for capturing transient current signals such as those found in motor controllers, switching power supplies, inverters and current amplifiers driving inductive loads.
The 1146B is the replacement of the 1146A. The 1146A is now discontinued. The 1146B is 100% form, fit, function and price equivalent to the 1146A.
Frequency range: DC to 100 kHz (-3dB with current de rating)
Current range: 100 mV/A: 100 mA to 10 A peak, 10 mV/A: 1 to 100 A peak
AC current accuracy: 100 mV/A (50 mV to 10 A peak) - 3% of reading =50 mA 10 mV/A (500 mA to 40 A peak) - 4% of reading =50 mA 10 mV/A (40 A to 100 A peak) - 15% max at 100 A
