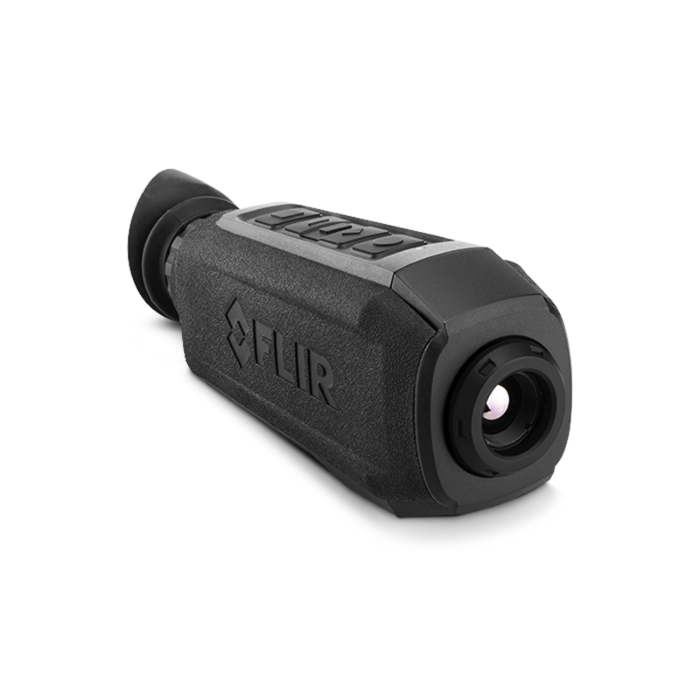

FLIR SCION PTM166
Professional Thermal Monocular, 640x480, 60Hz, 13.8mm, 32deg

Order #: SCION-PTM166

Mfg #: 7TM-01-F310

Questions about availability or need help? Contact Us:

(800) 633-0561
$4,842.60

FLIR SCION PTM166

Professional Thermal Monocular, 640x480, 60Hz, 13.8mm, 32deg

Order #: SCION-PTM166

Mfg #: 7TM-01-F310

$4,842.60
Availability: Ships in 3-4 weeks
This product is available for shipping to the United States, Canada, and Puerto Rico only.
This product is available for shipping to the United States, Canada, and Puerto Rico only.
This product is available for shipping to the United States, Canada, and Puerto Rico only.

Product Highlights

SCION PTM166 - Thermal monocular 640x480-12um-60Hz, 13.8mm-32°, Black

Built to equip law enforcement professionals with superior thermal surveillance, the FLIR Scion™ PTM packs high-performance thermal imaging and FLIR TruWITNESS® compatibility into a rugged, IP67-rated handheld monocular. Capable of geotagged video recording and live video transmission, the Scion PTM can instantly stream encrypted thermal footage of any pursuit, evidence recovery, or search and rescue effort to the command center via wireless network. A smooth 60 Hz refresh rate and picture-in-picture zoom capture minute details from a distance and maintain peripheral awareness for constant thermal supervision of suspects, team members, and standbys.

  • LIVE ENCRYPTED VIDEO STREAMING: Securely stream real-time thermal video to the command center via networked devices
  • RICH USER INTERFACE: The full-featured Scion PTM packs onboard recording, picture-in-picture zoom, and intuitive controls into a rugged thermal optic
  • SUPERIOR THERMAL DETECTION: The advanced image processing of FLIR's Boson® thermal core paired with a 60 Hz image refresh rate provide smooth, unwavering vision in challenging environments.
  • VERSATILE LENS OPTIONS: Available long-range lenses for the Scion family of thermal monoculars offers a new level of clarity and reach.

Each Unit Includes

  • SCION
  • Battery tray
  • 6xCR123
  • USB-C cable

Please Note: Thermal Imaging Cameras are classified by the U.S. Department of Commerce as "dual use" instruments. Transcat is authorized to sell these instruments only in the United States and Canada. Diversion contrary to U.S. law is prohibited. To ensure that Thermal Imagers sold by Transcat do not go outside the US or Canada, we require a Dual Use Instrument End-User Certification Form to be filled out at time of purchase.

Win a Generac Generator when purchasing $750 or more from Transcat.Win a Generac Generator when purchasing $750 or more from Transcat.
  1. FLIR GPX310 Scion 32 Whr Rechargeable Battery Kit (Bat,Cable,Charger)
    FLIR GPX310
    Scion 32 Whr Rechargeable Battery Kit (Bat,Cable,Charger)

    Order #: GPX310

    Mfg #: 7GX-03-F010

    Availability: Ships in 3-4 weeks
    Special Price $296.78 Regular Price $296.79
  2. FLIR GTX100 SCION docking station (Black) & USB-c cable
    FLIR GTX100
    SCION docking station (Black) & USB-c cable

    Order #: GTX100

    Mfg #: 7TX-01-F010

    Availability: Ships in 3-4 weeks
    Special Price $453.58 Regular Price $453.59
  3. FLIR 7GX-03-F011 6xCR123 Battery Tray (Scion)
    FLIR 7GX-03-F011
    6xCR123 Battery Tray (Scion)

    Order #: 7GX-03-F011

    Mfg #: 7GX-03-F011

    Availability: Ships in 3-4 weeks
    Special Price $190.38 Regular Price $190.39
  4. FLIR 7GY-01-M030 Scion Battery Door and Pin Kit
    FLIR 7GY-01-M030
    Scion Battery Door and Pin Kit

    Order #: 7GY-01-M030

    Mfg #: 7GY-01-M030

    Availability: Ships in 3-4 weeks
    Special Price $83.98 Regular Price $83.99
  5. FLIR 7GY-01-M040 Scion Lens Cover and Rubber Nose Cone
    FLIR 7GY-01-M040
    Scion Lens Cover and Rubber Nose Cone

    Order #: 7GY-01-M040

    Mfg #: 7GY-01-M040

    Availability: Ships in 3-4 weeks
    Special Price $54.58 Regular Price $54.59
  6. FLIR 7GY-01-M050 Scion USB Socket Cover and Screw
    FLIR 7GY-01-M050
    Scion USB Socket Cover and Screw

    Order #: 7GY-01-M050

    Mfg #: 7GY-01-M050

    Availability: Ships in 3-4 weeks
    Special Price $39.18 Regular Price $39.19
  7. FLIR 7OY-01-F020 Breach/Scion 35x55mm Bellowed Eye Cup
    FLIR 7OY-01-F020
    Breach/Scion 35x55mm Bellowed Eye Cup

    Order #: 7OY-01-F020

    Mfg #: 7OY-01-F020

    Availability: Ships in 3-4 weeks
    Special Price $16.78 Regular Price $16.79
General
Image Capture Yes
Overview
Detector Type 640 x 512
Display Quad-VGA (1280x960) High definition display
Internal Memory 2 GB Internal Storage / Optional microSD™ Card (up to 128 GB)
Size 239 x 76.8 x 60.5 mm (9.4 x 3 x 2.4 in)
Weight Without Batteries: 452 g; With Batteries 572 g
System Overview
Color (housing) Black
Core Technology BOSON 12 µm Vox Microbolometer
Display Focus Manual
Eye Relief 16 mm
Lens System 25 mm
Optical Magnification 2.6x
Connections & Communications
Bluetooth BLE 4.1+
Geo Positioning [GPS] Yes
TruWITNESS Integration Yes
Video Recording Yes
WiFi Video Streaming, File Transfer
Electrical & Mechanical
User Interface USB-C; Power In; Video Out; Video and Image File Transfer
Environmental
Mounting ¼-20 Tripod Mount
Imaging & Optical
Detection Range Performance [1.8 m man] 1000 m
Digital Zoom 1X | 2X | 4X
Field of View 9° x 6.5°
Focus Manual
Refresh Rate 60 Hz
Meter Data
Auto Power Off Yes
Power
Battery Life Up to 4.5 hours at 20°C
Battery Type 6x CR123A 3V Lithium Battery
UI-UX
Accelerometer Yes
DateTime Stamp Yes
Magnetic Compass Yes
Picture While Recording Yes
Real Time Clock Yes
Temperature Imaging Modes White Hot; Black Hot; Iron Bow; Rainbow; Graded Fire; Lava
Viewing Modes Scouting, Picture-in-Picture
