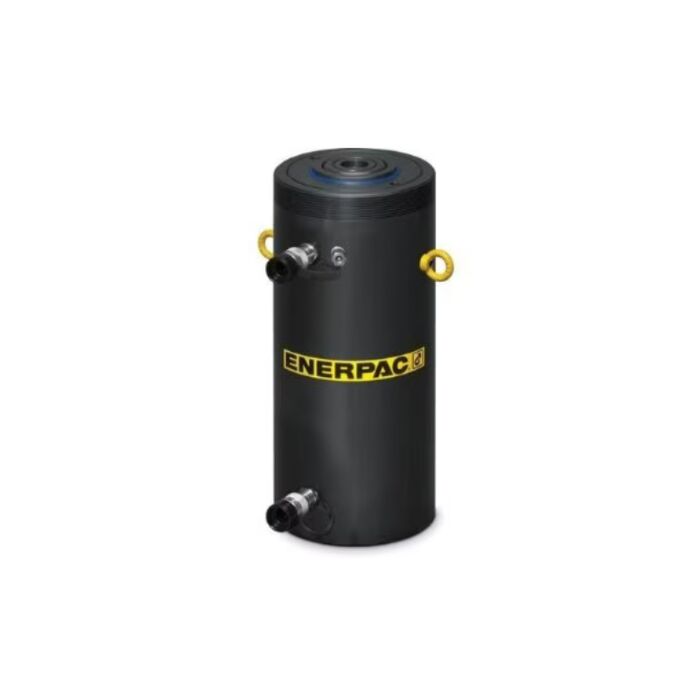

Enerpac HCR100012 High Tonnage Hydraulic Cylinder, 1196 ton, Double-Acti
Order #
HCR100012
|
Mfg #
HCR100012
Tariff fees or manufacture imposed surcharges may be applicable.
Overview
Product Highlights
1196 ton Capacity, 11.81 in Stroke, Double-Acting, High Tonnage Hydraulic Cylinder
- Fast advance and retract
- 10% side-load resistance over full stroke
- Hardened surface resists side-loading and cyclic wear
- Weather protected, inside and out
- Upper and lower replaceable bearings enclose the cylinder plunger for support throughout the stroke
- Certified lifting eyes, base mounting holes, and optional collar threads
Optional Collar Thread
- Collar thread is optional on 300 ton models and higher
- For collar thread on cylinder add suffix "E002" to the end of the model number
- The collar thread length is designed for full rated capacity
- Thread Size (W): M570 x 5
- Thread Length (X): 5.39 in (137 mm)
Specifications
| Maximum Operating Pressure (psi) |
10,150 |
| Capacity Class (tonnage) |
1000 |
| Maximum Cylinder Capacity Advance (short tons) |
1196 |
| Stroke (in) |
11.81 |
| Collapsed Height A (in) |
27.24 |
| Extended Height B (in) |
39.06 |
| Return Type |
Double-Acting, Hydraulic Return |
| Plunger Type |
Solid |
| Material |
Steel |
| Cylinder Effective Area Advance (in2) |
235.68 |
| Oil Capacity Advance (in3) |
2,783.65 |
| Oil Capacity Retract (in3) |
1121.51 |
| Sideload Resistance of Maximum Capacity (percentage) |
10% |
| Surface Treatment |
Nitride |
| Coupler |
CR400 Coupler |
| Weight (lbs) |
2,726 |
