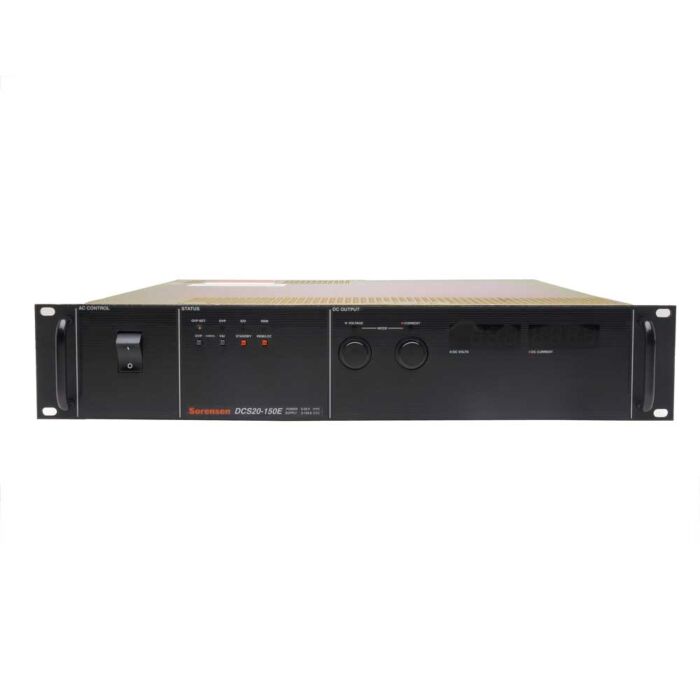

The DCS Series of 1 kW, 1.2 kW, and 3 kW DC programmable power supplies provides a highly reliable switch mode power supply platform.
This switched-mode DC power supply utilizes unique packaging techniques to achieve continuous full output power (1 kW, 1.2 kW, or 3 kW) in any volt/amp combination within the rated output voltage and current limits in a low-profile chassis.
This multi-range DC power supply family has an easy-to-use front panel with 10-turn potentiometers to adjust voltage and current settings that are displayed simultaneously. LEDs indicate overtemperature, remote programming, shutdown, and over-voltage protection, status, and constant voltage/current mode operation.
The DCS 3 kW Models must have push-button control of the output standby mode, OVP reset, remote/local programming, and preview status of voltage, current, and OVP setpoints.
The Sorensen DCS family programmable DC power supply can also be controlled remotely. Four analog control modes are standard as well as isolated analog control (option). Computer control can be accomplished over IEEE488.2 GPIB (option) or LXI-compliant Ethernet (option).
Features and Benefits
- Wide Voltage Ranges
- From 0-8 VDC to 0-600 VDC; current levels from 1.7A to 350A
- Easy Leader/Follower Paralleling with Active Current Sharing
- 5 Year Warranty
- Remote Programming
- Selectable remote programming for voltage, current, and OVP
- 16-bit programming through LXI-compliant Ethernet LAN / RS-232C (M130)
- 12-bit programming through IEEE-488.2 / RS-232C (Option M9C) Isolated analog programming (Option M51)
- Multichannel follower interface (Option M85 or M131)
- Software
- IVI-com driver for M130 option
- Labwindows CVI driver for M9C option
- Labview driver for M9C option
