Product Highlights
Measurement Flexibility (Configuration)
- 3-slot modular system
- Supports timing/state analyzers and pattern generator
- PCI expansion slots: 1 full profile, 1 low profile
User Interface
- 12.1 inch color touch screen display, 800 x 600 resolution
- Intuitive user interface and familiarity of Windows XP Pro
- Data views: waveform/chart, listing, packet viewer, source code, compare
- Dedicated hot keys, knobs, keyboard and mouse
Connectivity
- LAN: 10/100 BaseT (optional Gbit LAN)
- I/O Ports: Two USB 1.1, parallel, serial, external video, calibration BNC, Clock in BNC
- Interface to other instruments: Trigger In/Out, Target control port
- View Scope integrates time-correlated logic analyzer & scope waveforms into single, waveform display

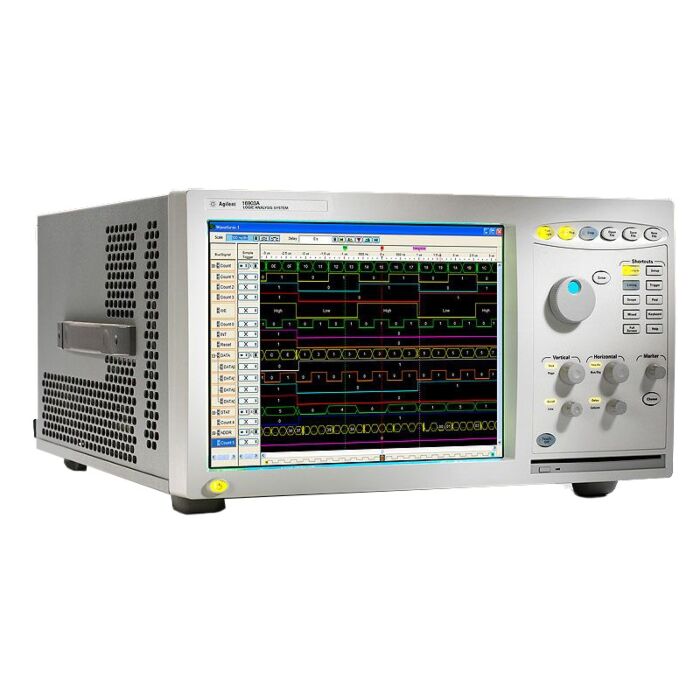

The Keysight 16903A logic analysis system provides high-performance, system-level debugging of digital designs. Expandability is the key to the system's long-term value. Customize this system for your specific needs with innovative probing, high-performance measurement modules, and post-processing analysis tools.
