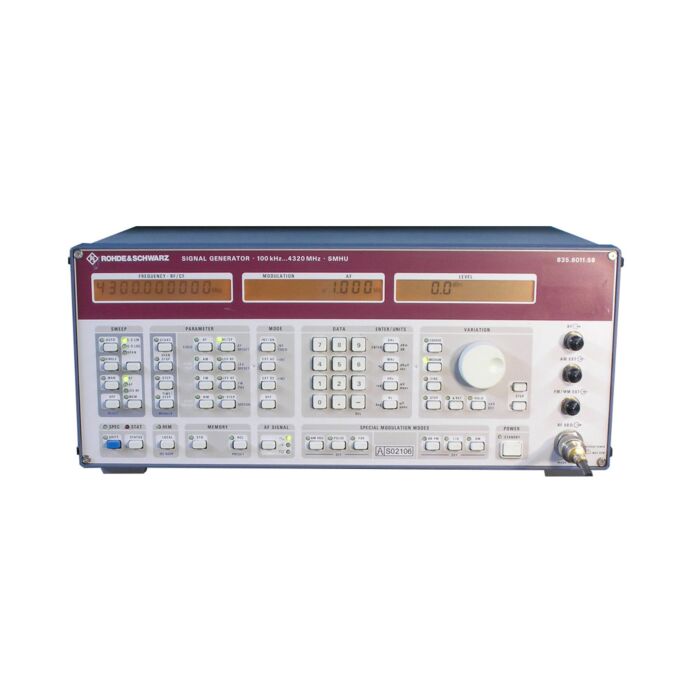

Rohde & Schwarz SMHU USED FOR SALE
High Accuracy Signal Generator 100kHz-4.32GHz

Order #: SMHU-USED

Mfg #: SMHU-USED

Questions about availability or need help? Contact Us:

(800) 633-0561
$2,658.67

Rohde & Schwarz SMHU USED FOR SALE

High Accuracy Signal Generator 100kHz-4.32GHz

Order #: SMHU-USED

Mfg #: SMHU-USED

$2,658.67

Request a Used Instrument Quote

Have a Question? Speak to a Transcat Expert: 800.264.4059

Used instruments from TranscatTranscat Used Instrument Guarantee
Calibration Certificate Included 6 Month Warranty Unsurpassed Service & Support

Used instruments from TranscatTranscat is a Premier Supplier Used Test and Measurement Equipment. Many options are available for a variety of instruments. Contact Transcat for all your used equipment needs.

Availability: Call for Availability
This product is available for shipping to the United States, Canada, and Puerto Rico only.
This product is available for shipping to the United States, Canada, and Puerto Rico only.
This product is available for shipping to the United States, Canada, and Puerto Rico only.

Product Highlights

R&S®SMGU and R&S®SMHU are ideal for applications which the majority of signal generators cannot handle. In addition to out-of-channel measurements, they are for instance able to determine the spurious rejection of radiotelephone equipment up to 4 GHz as laid down by CEPT.

High-performance generators with excellent features over a wide frequency range

  • R&S®SMGU: 100 kHz to 2160 MHz
  • R&S®SMHU: 100 kHz to 4320 MHz

Frequency

The frequency can be set with a resolution of 0.1 Hz over the entire range, and this is sufficient even for measurements on extremely narrowband DUTs. Both instruments supply frequencies down to 1 kHz. The frequency setting time is below 10 ms. In the fast mode up to 200 user-defined frequencies can be handled by means of a trigger signal or by memory sweep in less than 1 ms per setting.

Spectral purity

R&S®SMGU/SMHU fulfill requirements for selectivity measurements on top-class receivers. Signals of extremely high spectral purity afford critical adjacent-channel, in-channel and out-of-channel measurements with a wide tolerance margin. Phase noise remains low right up to the carrier. R&S®SMGU/SMHU are therefore ideal for LO applications or as a low-noise reference in noise measurement systems.

Frequency modulation

The FM modulation frequency range extends from DC to 1 MHz. In FM DC mode a high carrier-frequency accuracy is attained. The frequency offset occurring with FM DC selected is extremely small.

Amplitude modulation

The whole of the modulation frequency range can be used down to carrier frequencies of less than 100 kHz. The minimal phase shift at 30 Hz (AM DC) and a flat frequency response make for the precision amplitude modulation that is required for testing VOR/ILS navigation receivers.

Pulse modulation

Rise/fall times of 20 ns (typ. <10 ns for frequencies >200 MHz) and an on/off ratio of 80 dB open up a wide range of possibilities for testing telemetry, microwave link, radar and satellite communications systems.

Digital and analog sweep

In addition to the digital, step-by-step sweep with presettable start and stop frequency, span, step width and step time, an analog frequency and level sweep is also provided.

Phase offset

The phase of the RF output signal can be varied in steps of 1 using keyboard entry or the spinwheel. This makes it easier to adjust for phase quadrature during noise measurements and to investigate phase-critical components.
