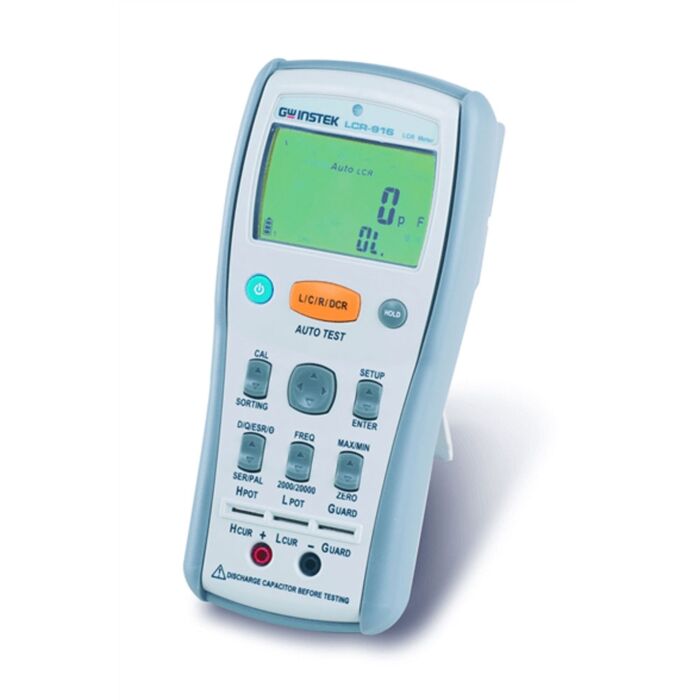

GW Instek LCR-916
HH LCR Meter,100kHz,200mH 2Mohm,20uf
Order #: LCR-916
Mfg #: LCR-916
$491.40
GW Instek LCR-916
HH LCR Meter,100kHz,200mH 2Mohm,20uf
Order #: LCR-916
Mfg #: LCR-916
$491.40
The LCR-916/915/914 is a smart, convenient and fully-functional dual display handheld LCR meter. The test frequency extends as high as 100 kHz/10kHz, providing greater flexibility to test a wider range of components.The LCR-916/915/914 uses a dual 20,000 /2,000 count display. The 20,000 count display is used for displaying the primary parameters such as capacitance, inductance and resistance as well as DC resistance measurement, and a 2,000 count display is for secondary parameters such as Q, D, ESR and RP measurement. Secondary measurements can also be combined with the primary measurement while the primary measurement is still being taken.
Availability: Ships in 4-6 weeks
Product Highlights
- 20,000/2,000 Counts Dual Display
- Test Frequency : 100/120Hz/1/10/100kHz
- Auto LCR Mode for DUT Measuring
- 0.2% Basic Accuracy
- Measurement Parameter : L,C,R,D,Q,ESR,θ,DCR
- Parallel/Series Testing Mode
- Sorting Mode for Quality Control
- 2Wire or 5Wire Measurement Available
- Data Hold and Zero Mode Supported
- Max/Min
- Auto Range, Auto Backlit
- Low Battery Indication
- Auto Power off
- Data Collection/AC power operation
Each Unit Includes
- Shorting Cube
- 2Wire Alligator Clip Set
- Magnetic Hang Kit
- Battery
- User Manual
- SMD Test Probe
- AC Adapter
- USB Cable
- PC Software CD
