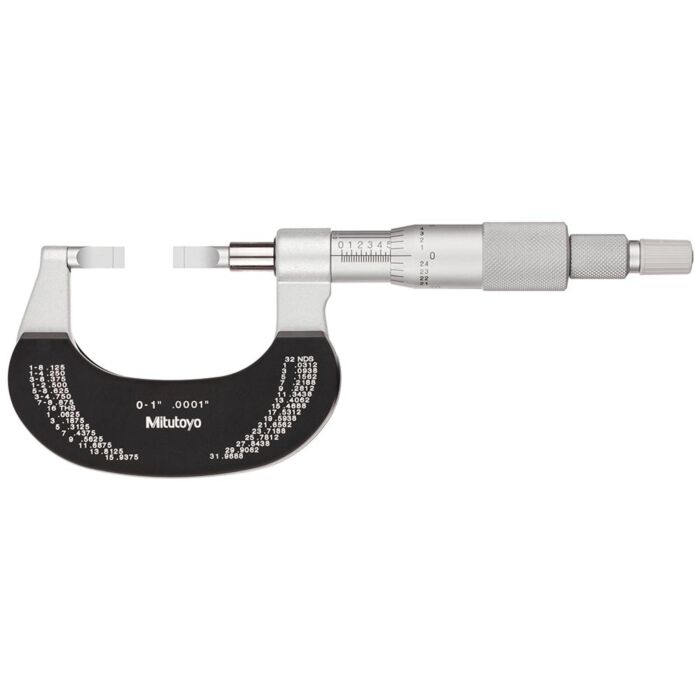

Mitutoyo 122-135 0-1" Blade Micrometer

Product Highlights

The Mitutoyo 122 series blade micrometer has a vernier scale in inch units for taking precise outside diameter (OD) measurements, and a blade anvil and spindle for measurement of groove diameter of shafts and keyways. The spindle does not rotate during adjustment, to help provide steady positioning for measurement.

The micrometer’s frame is made of high-grade tool steel for durability. The vernier scale on the thimble and sleeve is graduated to 0.0001”, and has a satin chrome rust- and glare-resistant finish. The spindle and anvils are made of hardened steel for durability. Micrometers that measure greater than 1” come with a standard bar for zero-setting. The unit comes with a fitted plastic case for storage.

• Range 0-1in
• Accuracy ±.00015in
• Type B
• Mass 260g
• The anvil and the spindle have a blade for measuring
• the groove diameter of shafts, keyways, and other hard-to-reach areas
• With Ratchet Stop for constant force

Each Unit Includes

• Supplied in fitted plastic case
