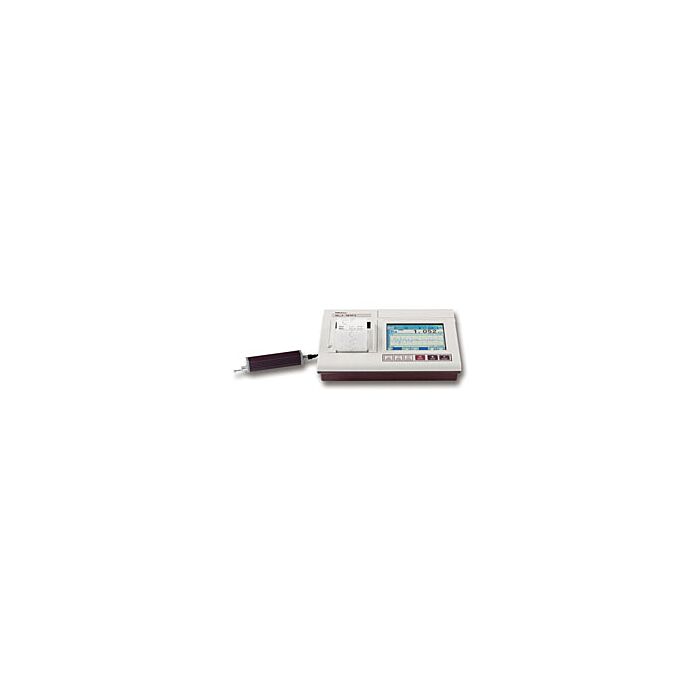

Mitutoyo 178-573-01A Surface Roughness Tester

The handheld data processing unit and the 5.7=inch color graphic LCD touch=panel provide superior readability and operability. The LCD also includes a backlight for improved visibility in dark environments.
The excellent user interface provides intuitive and easy=to=understand operability.
Complies with the following standards: JIS (JIS=B0601=2001, JIS=B0601=1994, JIS B0601= 1982), VDA, ISO= 1997, and ANSI.
The Measure=Start and other frequently used buttons are strengthened to resist wear and the detrimental effects of workshop contaminants.
Equipped with a large=capacity battery allowing approximately 1500 measurements when fully charged.
Includes convenient carrying case for protection in the field.
A high=speed printer is built into the main unit. Either landscape or portfolio mode can be selected according to the application. Paper saving mode is supported.
The display interface supports 16 languages, which can be freely switched.
10 sets of measurement conditions can be saved in the measurement unit–an optional memory card can save measurement conditions and the measured profile.
Drive Unit Retractable type (178=235)
Detector 0.75mN type(178=296)
Display Unit Standard type with printer
Detector: Conical taper angle 60°
Stylus Tip Radius 2µm
Detector measuring force 0.75mN
