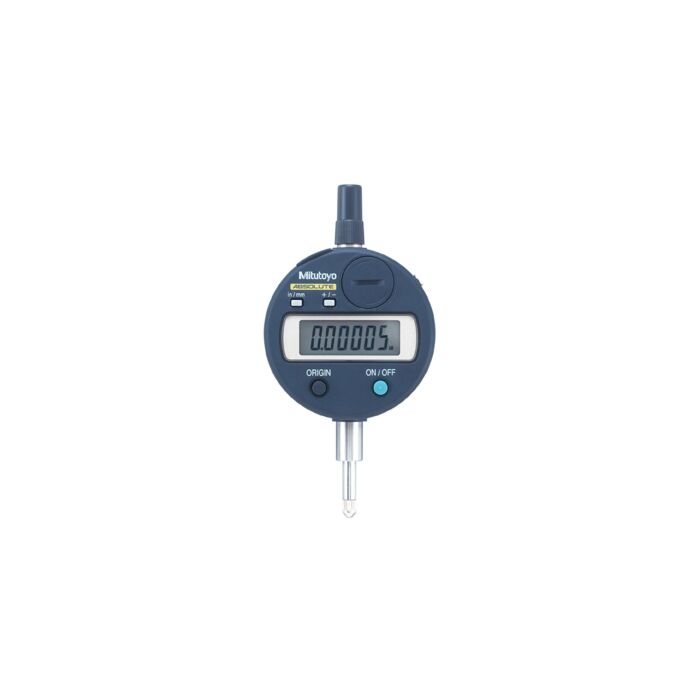

Mitutoyo 543-792 Digital Indicator

Product Highlights

• Absolute LCD Digimatic Indicator ID-S
• #4-48 UNF Thread
• 0.375" Stem Dia.
• Lug Back, 0-0.5"/0-12.7mm Range, 0.00005"/0.001mm Graduation, +/-0.00012" Accuracy
• Electronic dial indicator has a choice of resolution and a 0.5"/12.7mm measuring range for measuring surface variations
• Sealed housing Ingress Protection certified IP42 for dust and water protection, has a 0.375" diameter stem, a steel ball contact point, and a flat or lug back
• LCD converts between inch and metric units and is automatically set to zero at the current spindle location when powered on for measuring in either or both directions
• Alarm indicates low battery, scale contaminations, and data composition errors
• SPC data output (requires RS-232 cable, not included)
