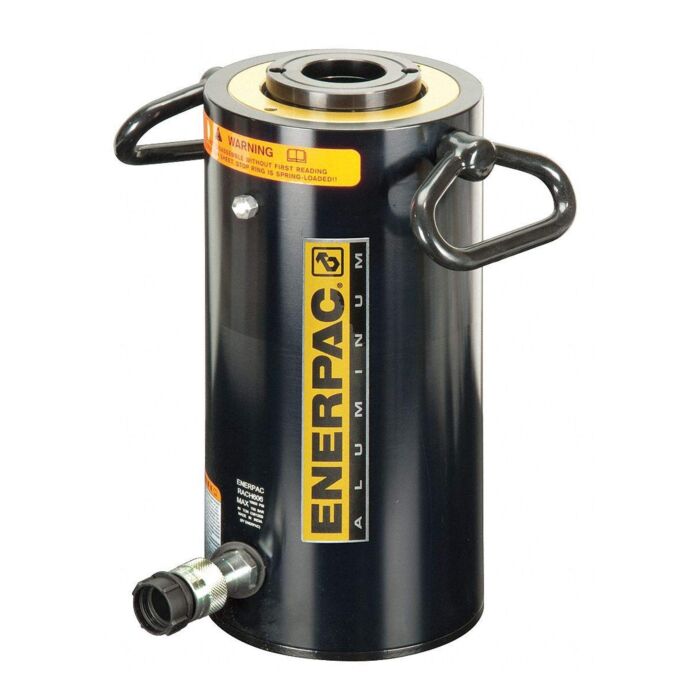

Enerpac RACH604 60 Ton SA Aluminum Cylinder, 4"/100mm Stroke, Hollow Plunger
Order #
RACH604
|
Mfg #
126415
Tariff fees or manufacture imposed surcharges may be applicable.
Overview
Product Highlights
- Hollow plunger design allows for both pull and push forces
- Composite bearings increase cylinder life and side load resistance
- Hard coat finish on all surfaces resists damage and extends cylinder life
- Handles included on all models
- Floating center tube increases seal life
- Steel baseplate and saddle for protection against load-induced damage
- Integral stop ring prevents plunger over-travel and is capable of withstanding the full cylinder capacity
- High-strength return spring for rapid cylinder retraction
- CR-400 coupler and dustcap included on all models
- All cylinders meet ASME B-30.1 standards
Specifications
| Cylinder capacity | 60 tons (65.6 maximum) |
| Stroke length | 3.94 inches |
| Effective area | 13.13 square inches |
| Oil capacity | 51.69 cubic inches |
| Plunger diameter | 3.94 inches |
| Collapsed height | 12.41 inches |
| Extended height | 16.35 inches |
| Outside diameter | 7.09 inches |
| Weight | 42.8 lb. |
