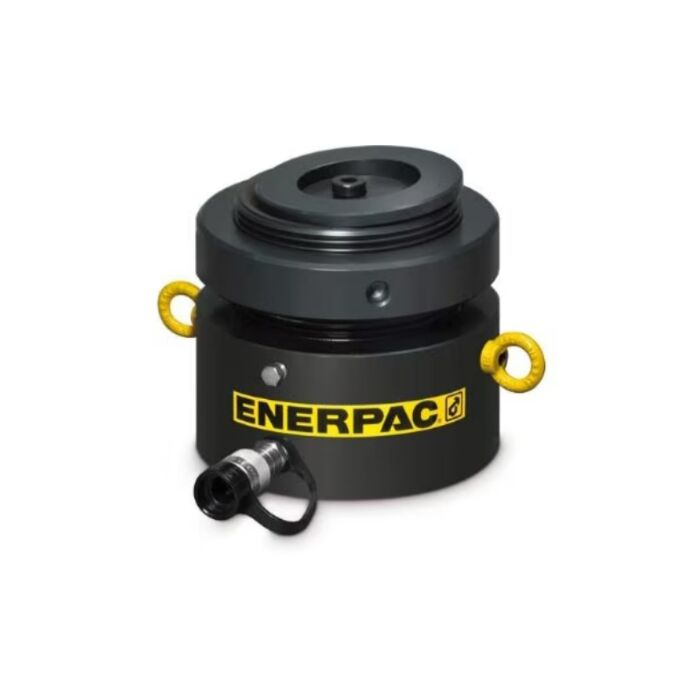

Enerpac LPL2502 Lock Nut Hydraulic Cylinder, 286 ton Capacity, 1.77" Stroke

Product Highlights

286 ton Capacity, 1.77 in Stroke, Low Height, Lock Nut Hydraulic Cylinder

LPL-Series hydraulic cylinders are ideal for heavy-duty applications where clearance space is restricted. The lock nut provides the reassurance of mechanical load holding for extended periods, helping to ensure safety on the job site.

LPL-Series Low-Height Cylinders have a longer stroke of up to 1.97" (50 mm) as compared with our CUSP and CULP pancake cylinders, and the tilt saddle allows for up to 5 degrees of misalignment. All are finished with a nitrocarburized coating for enhanced durability and corrosion protection in harsh working environments.

• Lock nut provides mechanical load holding for a safe work environment
• Integrated tilt saddle allows for up to 5 degrees of misalignment
• Extreme low-height for use in confined areas
• 5% side-load resistance of maximum capacity
• Overflow port as stroke limiter to prevent plunger blow-out
• Single-acting, gravity-return
