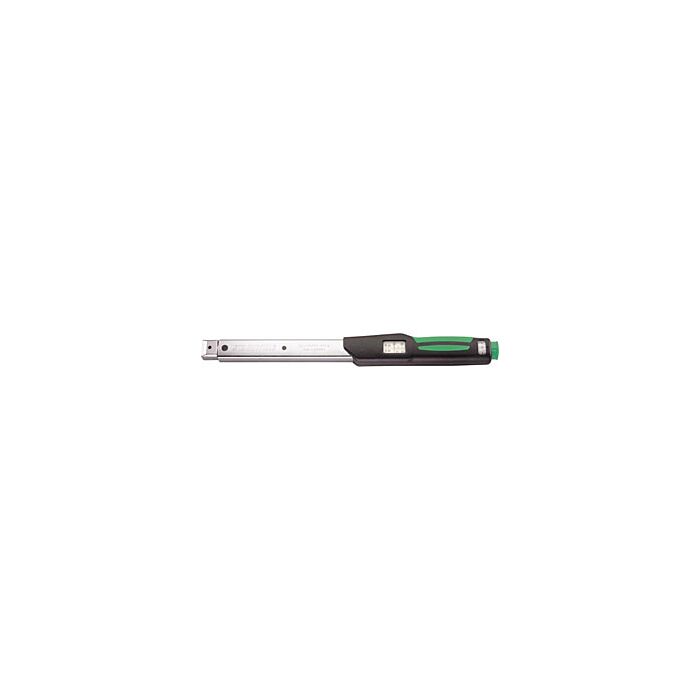

Stahlwille 730N/12
Torque Wrench w/Cut-out

Order #: 50181012

Mfg #: 50181012

Questions about availability or need help? Contact Us:

(800) 633-0561
$1,100.40

Stahlwille 730N/12

Torque Wrench w/Cut-out

Order #: 50181012

Mfg #: 50181012

$1,100.40
Availability: Ships in 3-4 weeks

Product Highlights

  • Registered design, clicking torque wrench with mount for interchangeable insert tools, rapid, accurate setting using QuickSelect quick-action adjuster, with QuickRelease safety lock, double stop signals, very clear twin scales with colour coded N m/ft.lb and ft.lb/inch.lb markings and long-term repeated accuracy
  • The measuring element is only under load while force is being applied, no need for manual reset to zero
  • All the sensitive components are protected by the sturdy housing
  • The 2-component handle with its ergonomically designed green softer layers is resistant to oils, grease, fuels, brake fluids and Skydrol
  • Any force applied to the tool after the "click" or applied in the opposite direction to the current function - e.g. forcible loosening of a jammed screw - does not act on the trigger mechanism and cannot cause damage to it
  • The swap-over inserts can also be used to apply torque in an anticlockwise direction
  • Easily adjustable without disassembly, e.g. using tester No 7707 W or calibration system No 7706
  • Deviation of indication ± 3%. With certificate
  • size 12
  • Scale Range 25-130 N m
  • Scale Range 20-95 ft.lb
  • Scale Division 10 N m
  • Scale Division 2,5 ft.lb
  • Fine scale Scale Division 0,5 N m
  • Size of Insert Tool Carrier in mm (MANOSKOP) (Inside Square) mm 14 x 18
  • b mm 28
  • h mm 23
  • L mm 421
  • LF mm 379
  • SF mm 25
  • Weight g 1128
