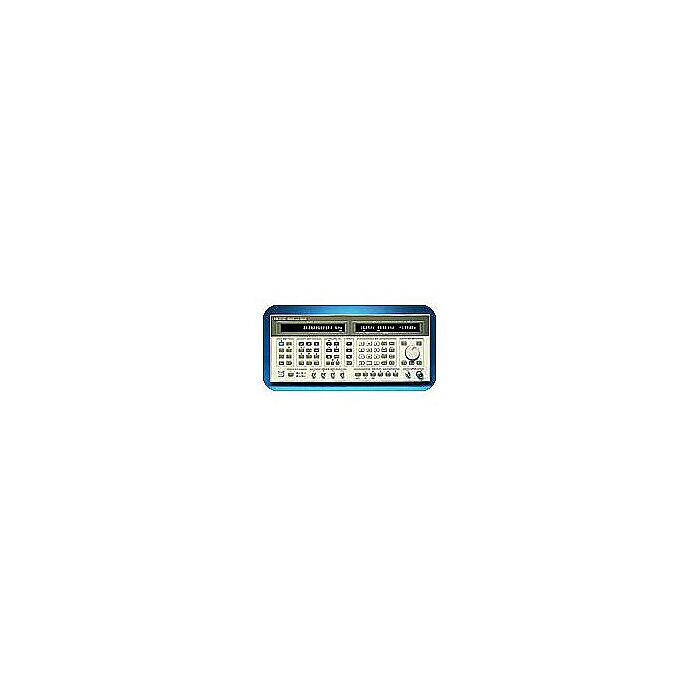

Keysight 8665B Highlights
The Keysight 8665B signal generator is suited for basic receiver testing up to 6 GHz. With Option 004 (low-noise enhancement), it can be used for out-of-channel receiver testing or as a clock source where having the lowest phase jitter is important. Radar testing can be done by adding Option 008 (pulse modulation) . Pulse width and delay can be internally adjusted between 50 ns and 999 ns, eliminating the need for an external pulse generator. Standard FM rates of up to 2 MHz and deviations to 20 MHz are suitable for many applications such as high-speed digital communications. The internal modulation source generates sine, square, triangle or sawtooth waveforms. For applications demanding the lowest RF leakage, Option 010 provides increased RF shielding.
- <-140 dBc/Hz typical SSB phase noise at 20 kHz offset at 1 GHz with Option 004
- <-100 dBc nonharmonic spurious to 2 GHz reduces error when testing spurious immunity of receivers
- AM, FM, and optional pulse modulation
- 0.01 Hz frequency resolution
- On-site repair and calibration
- 0.01Hz Resolution, Low distortion sinewaves to 400kHz, GPIB With Opt: 001: High-stability time-base; Option 004: Low SSB Phase Noise
